Step1: Product

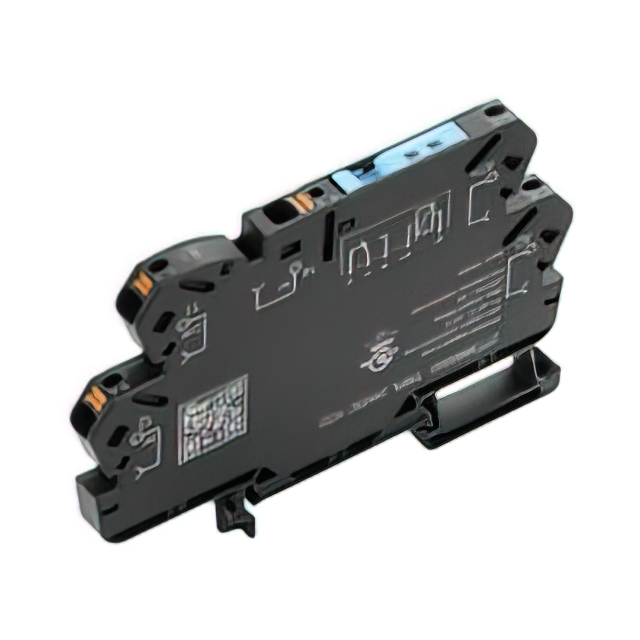

Weidmüller 2774030000
Image shown is a representation only
Manufacturer
Manufacturer No
2774030000
Packaging
Box
Description
TERMSERIES-COMPACT, RELAY MODULE
Detailed Description
General Purpose Relay SPDT (1 Form C) 5VDC Coil DIN Rail
DataSheet
Mfr
Weidmüller
Series
TERMSERIES
Features
Diode, Lighted Indicator, Socket Included
Coil Type
Non Latching
Packaging
Box
Relay Type
General Purpose
Part Status
Active
Coil Current
34 mA
Coil Voltage
5VDC
Contact Form
SPDT (1 Form C)
Operate Time
6 ms
Release Time
7 ms
Mounting Type
DIN Rail
Approval Agency
CE, cULus, EAC
Coil Resistance
147.059 Ohms
Contact Material
Silver Nickel (AgNi)
Switching Voltage
250VAC, 250VDC - Max
Termination Style
Spring Terminal
Base Product Number
277403
Must Operate Voltage
4 VDC
Must Release Voltage
1 VDC
Operating Temperature
-40°C ~ 60°C
Contact Rating (Current)
6 A
| Attribute | Value |
|---|---|
| Mfr | Weidmüller |
| Series | TERMSERIES |
| Features | Diode, Lighted Indicator, Socket Included |
| Coil Type | Non Latching |
| Packaging | Box |
| Relay Type | General Purpose |
| Part Status | Active |
| Coil Current | 34 mA |
| Coil Voltage | 5VDC |
| Contact Form | SPDT (1 Form C) |
| Operate Time | 6 ms |
| Release Time | 7 ms |
| Mounting Type | DIN Rail |
| Approval Agency | CE, cULus, EAC |
| Coil Resistance | 147.059 Ohms |
| Contact Material | Silver Nickel (AgNi) |
| Switching Voltage | 250VAC, 250VDC - Max |
| Termination Style | Spring Terminal |
| Base Product Number | 277403 |
| Must Operate Voltage | 4 VDC |
| Must Release Voltage | 1 VDC |
| Operating Temperature | -40°C ~ 60°C |
| Contact Rating (Current) | 6 A |
