Step1: Product
Weidmüller 1984030000

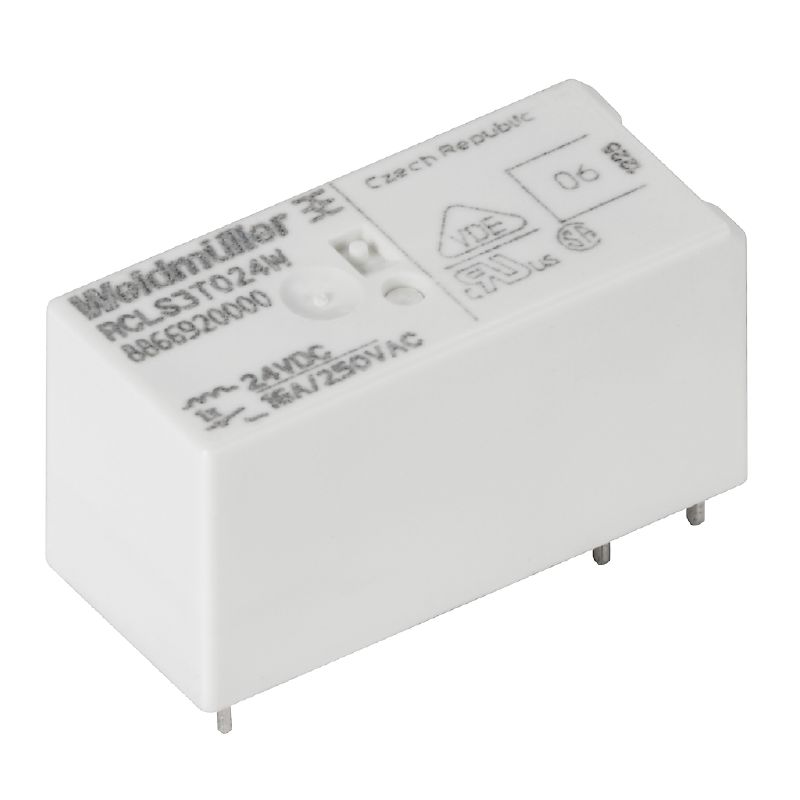

Image shown is a representation only
Manufacturer
Manufacturer No
1984030000
Packaging
Bulk
Description
RCL314012W
Detailed Description
General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
DataSheet
Mfr
Weidmüller
Series
TERMSERIES
Coil Type
Non Latching
Packaging
Bulk
Relay Type
General Purpose
Part Status
Active
Coil Current
35.8 mA
Coil Voltage
12VDC
Contact Form
SPDT (1 Form C)
Operate Time
8 ms
Release Time
4 ms
Mounting Type
Through Hole
Approval Agency
CE, cULus, EAC
Coil Resistance
360 Ohms
Contact Material
Silver Nickel (AgNi)
Switching Voltage
250VAC - Max
Termination Style
PC Pin
Base Product Number
198403
Load - Max Switching
4000VA
Must Operate Voltage
8.4 VDC
Must Release Voltage
1.2 VDC
Operating Temperature
-40°C ~ 70°C
Contact Rating (Current)
16 A
| Attribute | Value |
|---|---|
| Mfr | Weidmüller |
| Series | TERMSERIES |
| Coil Type | Non Latching |
| Packaging | Bulk |
| Relay Type | General Purpose |
| Part Status | Active |
| Coil Current | 35.8 mA |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Operate Time | 8 ms |
| Release Time | 4 ms |
| Mounting Type | Through Hole |
| Approval Agency | CE, cULus, EAC |
| Coil Resistance | 360 Ohms |
| Contact Material | Silver Nickel (AgNi) |
| Switching Voltage | 250VAC - Max |
| Termination Style | PC Pin |
| Base Product Number | 198403 |
| Load - Max Switching | 4000VA |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operating Temperature | -40°C ~ 70°C |
| Contact Rating (Current) | 16 A |
