Step1: Product

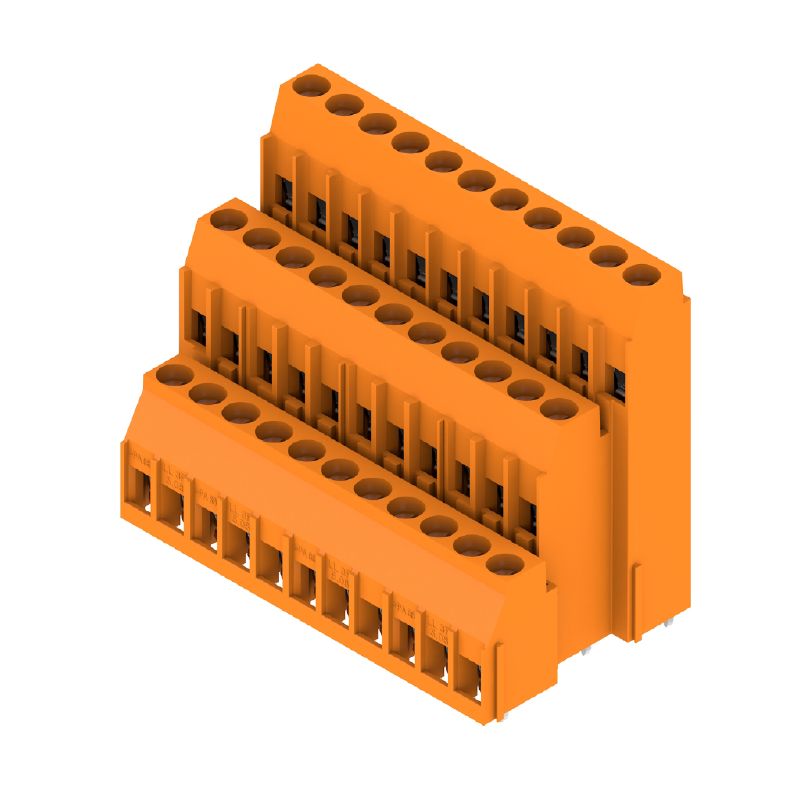

Weidmüller 1979130000
Image shown is a representation only
Manufacturer
Manufacturer No
1979130000
Packaging
Box
Description
LL3R 5.08/33/90 3.2SN OR BX
Detailed Description
11 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole
DataSheet
Color
Orange
Pitch
0.200" (5.08mm)
Series
Omnimate LL
Current
20 A
Voltage
300 V
Features
Interlocking (Side)
Packaging
Box
Wire Gauge
12-26 AWG
Part Status
Active
Manufacturer
Weidmüller
Screw Thread
M3
Mounting Type
Through Hole
Torque - Screw
0.5-0.6 Nm (4.4-5.3 Lb-In)
Housing Material
Thermoplastic, Wemid
Number of Levels
3
Wire Termination
Screw - Clamping Yoke, Tension Sleeve
Mating Orientation
Horizontal with Board
Positions Per Level
11
Operating Temperature
-50°C ~ 120°C
Contact Material - Plating
Copper Alloy - Tin Plated
| Attribute | Value |
|---|---|
| Color | Orange |
| Pitch | 0.200" (5.08mm) |
| Series | Omnimate LL |
| Current | 20 A |
| Voltage | 300 V |
| Features | Interlocking (Side) |
| Packaging | Box |
| Wire Gauge | 12-26 AWG |
| Part Status | Active |
| Manufacturer | Weidmüller |
| Screw Thread | M3 |
| Mounting Type | Through Hole |
| Torque - Screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) |
| Housing Material | Thermoplastic, Wemid |
| Number of Levels | 3 |
| Wire Termination | Screw - Clamping Yoke, Tension Sleeve |
| Mating Orientation | Horizontal with Board |
| Positions Per Level | 11 |
| Operating Temperature | -50°C ~ 120°C |
| Contact Material - Plating | Copper Alloy - Tin Plated |
