Step1: Product

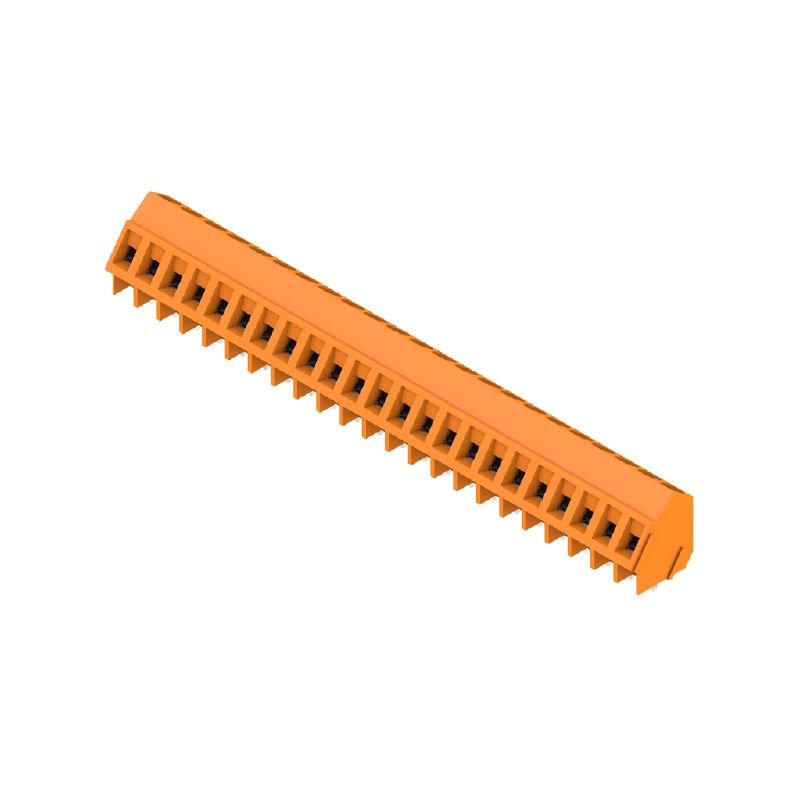

Weidmüller 1234030000
Image shown is a representation only
Manufacturer
Manufacturer No
1234030000
Packaging
Box
Description
LM 5.00/23/135 3.5SN OR BX
Detailed Description
23 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.197" (5.00mm) Through Hole
DataSheet
Color
Orange
Pitch
0.197" (5.00mm)
Series
Omnimate LM
Current
15 A
Voltage
300 V
Features
Interlocking (Side)
Packaging
Box
Wire Gauge
14-24 AWG
Part Status
Last Time Buy
Manufacturer
Weidmüller
Screw Thread
M2.5
Mounting Type
Through Hole
Torque - Screw
0.4-0.5 Nm (3.5-4.4 Lb-In)
Housing Material
Thermoplastic, Wemid
Number of Levels
1
Wire Termination
Screw - Clamping Yoke, Tension Sleeve
Mating Orientation
45° (135°) Angle with Board
Positions Per Level
23
Operating Temperature
-50°C ~ 120°C
Contact Material - Plating
Copper Alloy - Tin Plated
| Attribute | Value |
|---|---|
| Color | Orange |
| Pitch | 0.197" (5.00mm) |
| Series | Omnimate LM |
| Current | 15 A |
| Voltage | 300 V |
| Features | Interlocking (Side) |
| Packaging | Box |
| Wire Gauge | 14-24 AWG |
| Part Status | Last Time Buy |
| Manufacturer | Weidmüller |
| Screw Thread | M2.5 |
| Mounting Type | Through Hole |
| Torque - Screw | 0.4-0.5 Nm (3.5-4.4 Lb-In) |
| Housing Material | Thermoplastic, Wemid |
| Number of Levels | 1 |
| Wire Termination | Screw - Clamping Yoke, Tension Sleeve |
| Mating Orientation | 45° (135°) Angle with Board |
| Positions Per Level | 23 |
| Operating Temperature | -50°C ~ 120°C |
| Contact Material - Plating | Copper Alloy - Tin Plated |
