Step1: Product
Wakefield Thermal Solutions DS1203812H2B-BT0

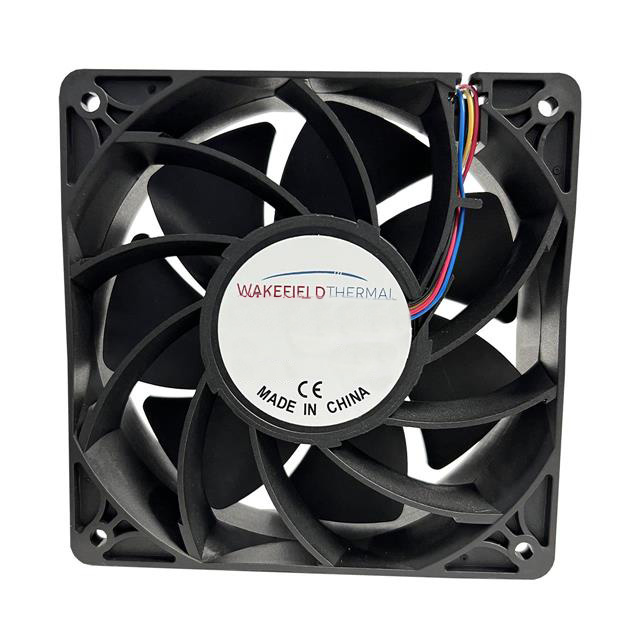

Image shown is a representation only
Manufacturer
Manufacturer No
DS1203812H2B-BT0
Packaging
Box
Description
FAN AXIAL 120X38MM 12VDC WIRE
Detailed Description
Fan Tubeaxial 12VDC Square - 120mm L x 120mm H Ball 197.5 CFM (5.53m³/min) 4 Wire Leads
DataSheet
Mfr
Wakefield Thermal Solutions
RPM
5500 RPM
Noise
60.2dB(A)
Width
38.00mm
Series
DS
Air Flow
197.5 CFM (5.53m³/min)
Fan Type
Tubeaxial
Features
PWM Control, Speed Sensor (Tach)
Packaging
Box
Part Status
Active
Termination
4 Wire Leads
Bearing Type
Ball
Power (Watts)
24 W
Approval Agency
CE
Static Pressure
1.126 in H2O (280.5 Pa)
Voltage - Rated
12VDC
Lifetime @ Temp.
70000 Hrs @ 40°C
Material - Blade
Polybutylene Terephthalate (PBT)
Material - Frame
Polybutylene Terephthalate (PBT)
Size / Dimension
Square - 120mm L x 120mm H
Current Rating (Amps)
2A
Operating Temperature
14 ~ 158°F (-10 ~ 70°C)
| Attribute | Value |
|---|---|
| Mfr | Wakefield Thermal Solutions |
| RPM | 5500 RPM |
| Noise | 60.2dB(A) |
| Width | 38.00mm |
| Series | DS |
| Air Flow | 197.5 CFM (5.53m³/min) |
| Fan Type | Tubeaxial |
| Features | PWM Control, Speed Sensor (Tach) |
| Packaging | Box |
| Part Status | Active |
| Termination | 4 Wire Leads |
| Bearing Type | Ball |
| Power (Watts) | 24 W |
| Approval Agency | CE |
| Static Pressure | 1.126 in H2O (280.5 Pa) |
| Voltage - Rated | 12VDC |
| Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Polybutylene Terephthalate (PBT) |
| Size / Dimension | Square - 120mm L x 120mm H |
| Current Rating (Amps) | 2A |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
