Step1: Product
Würth Elektronik 643270100308

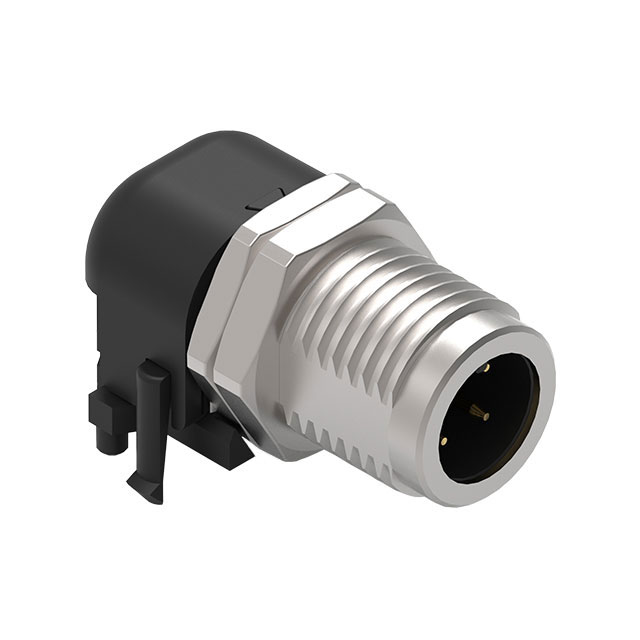

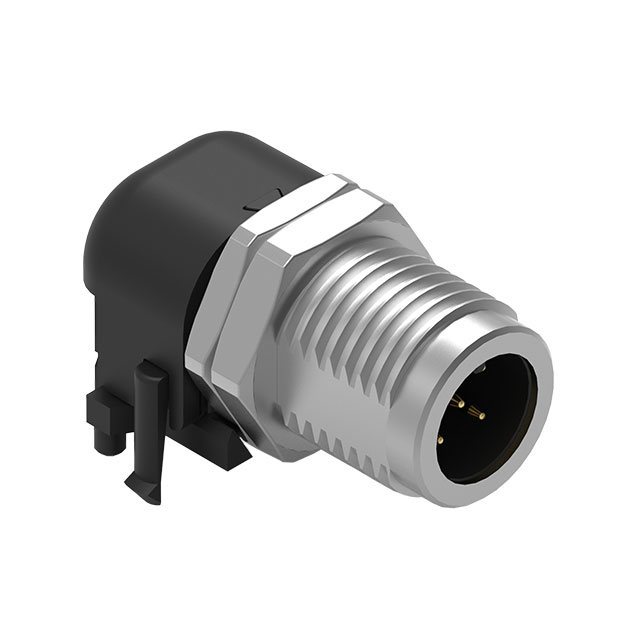

Image shown is a representation only
Manufacturer
Manufacturer No
643270100308
Packaging
Tray
Description
WR-CIRC M12 - SCREW - CODING A -
Detailed Description
8 Position Circular Connector Receptacle, Male Pins Screw
DataSheet
Mfr
Würth Elektronik
Color
Black
Series
WR-CIRCM12
Features
Board Guide, Board Lock
Packaging
Tray
Orientation
A
Part Status
Active
Termination
Screw
Shell Finish
Nickel
Cable Opening
0.661" (16.80mm)
Mounting Type
Panel Mount, Through Hole, Right Angle
Connector Type
Receptacle, Male Pins
Fastening Type
Threaded
Shell Material
Metal
Voltage Rating
30V
Insert Material
Polybutylene Terephthalate (PBT)
Contact Material
Copper Alloy
Mounting Feature
Bulkhead - Front Side Nut
Primary Material
Metal
Ingress Protection
IP68 - Dust Tight, Waterproof
Number of Positions
8
Shell Size - Insert
M12-8
Current Rating (Amps)
2A
Operating Temperature
-40°C ~ 90°C
Contact Finish - Mating
Gold
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Würth Elektronik |
| Color | Black |
| Series | WR-CIRCM12 |
| Features | Board Guide, Board Lock |
| Packaging | Tray |
| Orientation | A |
| Part Status | Active |
| Termination | Screw |
| Shell Finish | Nickel |
| Cable Opening | 0.661" (16.80mm) |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Threaded |
| Shell Material | Metal |
| Voltage Rating | 30V |
| Insert Material | Polybutylene Terephthalate (PBT) |
| Contact Material | Copper Alloy |
| Mounting Feature | Bulkhead - Front Side Nut |
| Primary Material | Metal |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Number of Positions | 8 |
| Shell Size - Insert | M12-8 |
| Current Rating (Amps) | 2A |
| Operating Temperature | -40°C ~ 90°C |
| Contact Finish - Mating | Gold |
| Material Flammability Rating | UL94 V-0 |
