Step1: Product

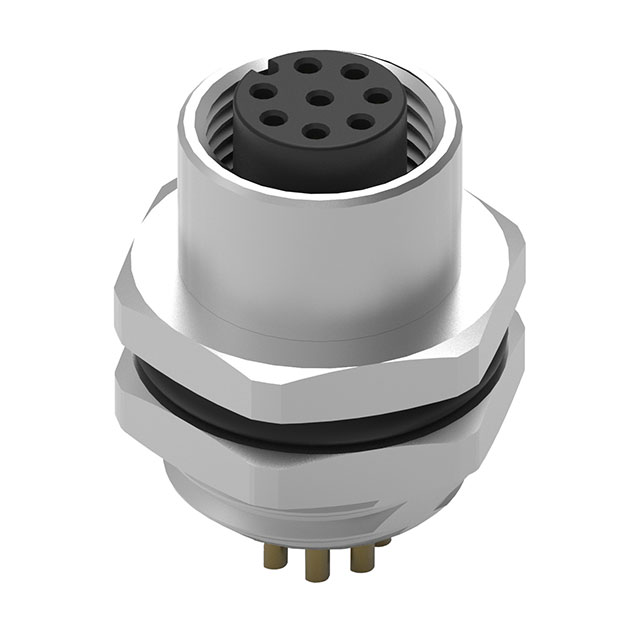

Würth Elektronik 643060100608
Image shown is a representation only
Manufacturer
Manufacturer No
643060100608
Packaging
Tray
Description
WR-CIRC M12 - SCREW - CODING A -
Detailed Description
8 Position Circular Connector Receptacle, Female Sockets Solder Cup
DataSheet
Mfr
Würth Elektronik
Color
Black
Series
WR-CIRCM12
Packaging
Tray
Orientation
A
Part Status
Active
Termination
Solder Cup
Shell Finish
Nickel
Mounting Type
Panel Mount
Connector Type
Receptacle, Female Sockets
Fastening Type
Threaded
Shell Material
Zinc Alloy
Voltage Rating
30V
Insert Material
Polyamide (PA66), Nylon 6/6
Contact Material
Copper Alloy
Mounting Feature
Bulkhead - Rear Side Nut
Primary Material
Metal
Ingress Protection
IP68 - Dust Tight, Waterproof
Number of Positions
8
Shell Size - Insert
M12-8
Current Rating (Amps)
2A
Operating Temperature
-40°C ~ 90°C
Contact Finish - Mating
Gold
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Würth Elektronik |
| Color | Black |
| Series | WR-CIRCM12 |
| Packaging | Tray |
| Orientation | A |
| Part Status | Active |
| Termination | Solder Cup |
| Shell Finish | Nickel |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Threaded |
| Shell Material | Zinc Alloy |
| Voltage Rating | 30V |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Contact Material | Copper Alloy |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Primary Material | Metal |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Number of Positions | 8 |
| Shell Size - Insert | M12-8 |
| Current Rating (Amps) | 2A |
| Operating Temperature | -40°C ~ 90°C |
| Contact Finish - Mating | Gold |
| Material Flammability Rating | UL94 V-0 |
