Step1: Product
Würth Elektronik 430753051832

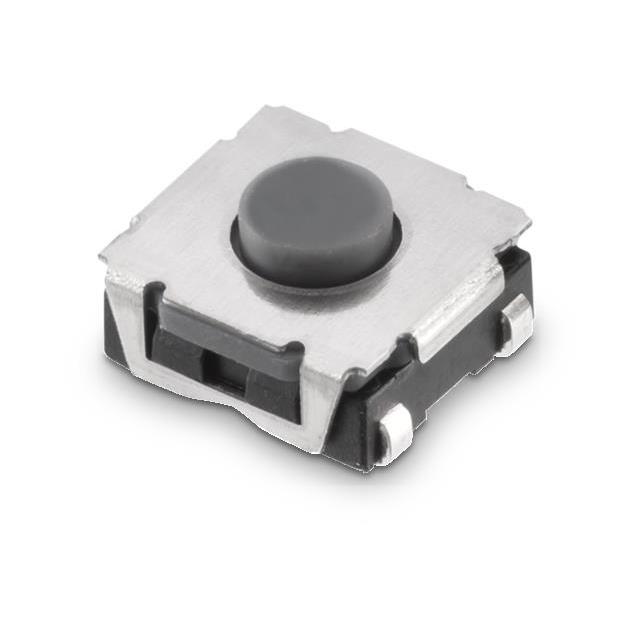

Image shown is a representation only
Manufacturer
Manufacturer No
430753051832
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
WS-TASV_SMT IP67 TACT SWITCH J-H
Detailed Description
Tactile Switch SPST-NO Top Actuated Surface Mount
DataSheet
Mfr
Würth Elektronik
Series
WS-TASV
Circuit
SPST-NO
Outline
6.20mm x 6.20mm
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Illumination
Non-Illuminated
Actuator Type
Standard
Mounting Type
Surface Mount
Switch Travel
0.60mm
Mechanical Life
200,000 Cycles
Operating Force
320gf
Switch Function
Off-Mom
Actuator Material
Silicone Rubber
Termination Style
J Lead
Ingress Protection
IP67 - Dust Tight, Waterproof
Actuator Orientation
Top Actuated
Operating Temperature
-40°C ~ 85°C
Contact Rating @ Voltage
0.05A @ 12VDC
Actuator Height off PCB, Vertical
5.10mm
| Attribute | Value |
|---|---|
| Mfr | Würth Elektronik |
| Series | WS-TASV |
| Circuit | SPST-NO |
| Outline | 6.20mm x 6.20mm |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Illumination | Non-Illuminated |
| Actuator Type | Standard |
| Mounting Type | Surface Mount |
| Switch Travel | 0.60mm |
| Mechanical Life | 200,000 Cycles |
| Operating Force | 320gf |
| Switch Function | Off-Mom |
| Actuator Material | Silicone Rubber |
| Termination Style | J Lead |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Actuator Orientation | Top Actuated |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Actuator Height off PCB, Vertical | 5.10mm |
