Step1: Product

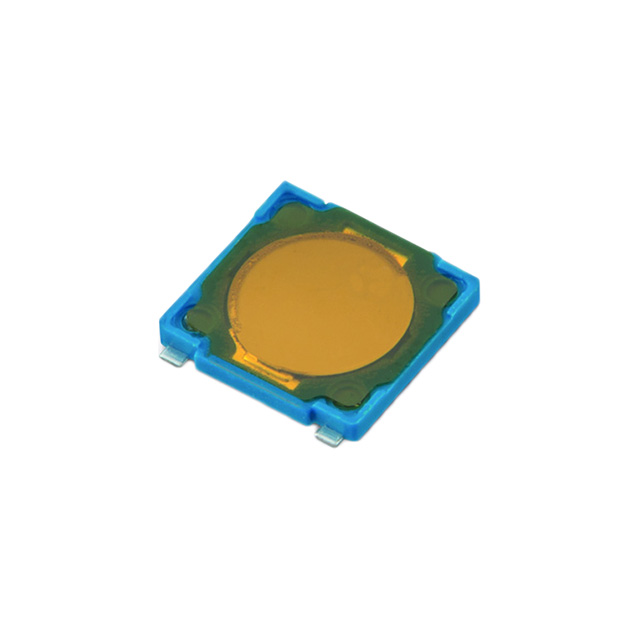

Würth Elektronik 430181005816
Image shown is a representation only
Manufacturer
Manufacturer No
430181005816
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
SWITCH TACTILE SPST-NO 0.05A 12V
Detailed Description
Tactile Switch SPST-NO Top Actuated Surface Mount
DataSheet
Mfr
Würth Elektronik
Series
WS-TASV
Circuit
SPST-NO
Outline
4.50mm x 4.50mm
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Illumination
Non-Illuminated
Actuator Type
Without
Mounting Type
Surface Mount
Switch Travel
0.20mm
Mechanical Life
1,000,000 Cycles
Operating Force
160gf
Switch Function
Off-Mom
Actuator Material
Stainless Steel
Termination Style
SMD (SMT) Tab
Base Product Number
43018
Actuator Orientation
Top Actuated
Operating Temperature
-40°C ~ 85°C
Contact Rating @ Voltage
0.05A @ 12VDC
Actuator Height off PCB, Vertical
0.55mm
| Attribute | Value |
|---|---|
| Mfr | Würth Elektronik |
| Series | WS-TASV |
| Circuit | SPST-NO |
| Outline | 4.50mm x 4.50mm |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Illumination | Non-Illuminated |
| Actuator Type | Without |
| Mounting Type | Surface Mount |
| Switch Travel | 0.20mm |
| Mechanical Life | 1,000,000 Cycles |
| Operating Force | 160gf |
| Switch Function | Off-Mom |
| Actuator Material | Stainless Steel |
| Termination Style | SMD (SMT) Tab |
| Base Product Number | 43018 |
| Actuator Orientation | Top Actuated |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Actuator Height off PCB, Vertical | 0.55mm |
