Step1: Product
Würth Elektronik 430156043736

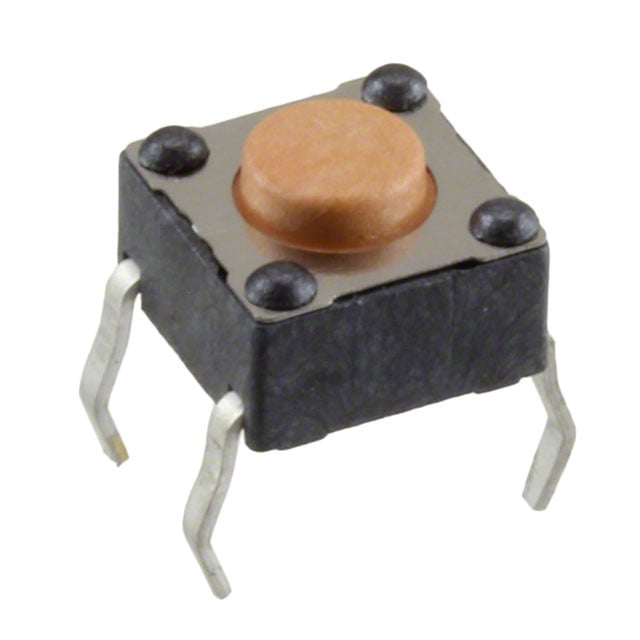

Image shown is a representation only
Manufacturer
Manufacturer No
430156043736
Packaging
Bulk
Description
SWITCH TACTILE SPST-NO 0.05A 12V
Detailed Description
Tactile Switch SPST-NO Top Actuated Through Hole
DataSheet
Mfr
Würth Elektronik
Series
WS-TATV
Circuit
SPST-NO
Outline
6.20mm x 6.20mm
Packaging
Bulk
Part Status
Active
Illumination
Non-Illuminated
Actuator Type
Standard
Mounting Type
Through Hole
Switch Travel
0.25mm
Mechanical Life
200,000 Cycles
Operating Force
360gf
Switch Function
Off-Mom
Actuator Material
Liquid Crystal Polymer (LCP)
Termination Style
PC Pin
Base Product Number
43015
Actuator Orientation
Top Actuated
Operating Temperature
-40°C ~ 85°C
Contact Rating @ Voltage
0.05A @ 12VDC
Actuator Height off PCB, Vertical
4.30mm
| Attribute | Value |
|---|---|
| Mfr | Würth Elektronik |
| Series | WS-TATV |
| Circuit | SPST-NO |
| Outline | 6.20mm x 6.20mm |
| Packaging | Bulk |
| Part Status | Active |
| Illumination | Non-Illuminated |
| Actuator Type | Standard |
| Mounting Type | Through Hole |
| Switch Travel | 0.25mm |
| Mechanical Life | 200,000 Cycles |
| Operating Force | 360gf |
| Switch Function | Off-Mom |
| Actuator Material | Liquid Crystal Polymer (LCP) |
| Termination Style | PC Pin |
| Base Product Number | 43015 |
| Actuator Orientation | Top Actuated |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Actuator Height off PCB, Vertical | 4.30mm |
