Step1: Product

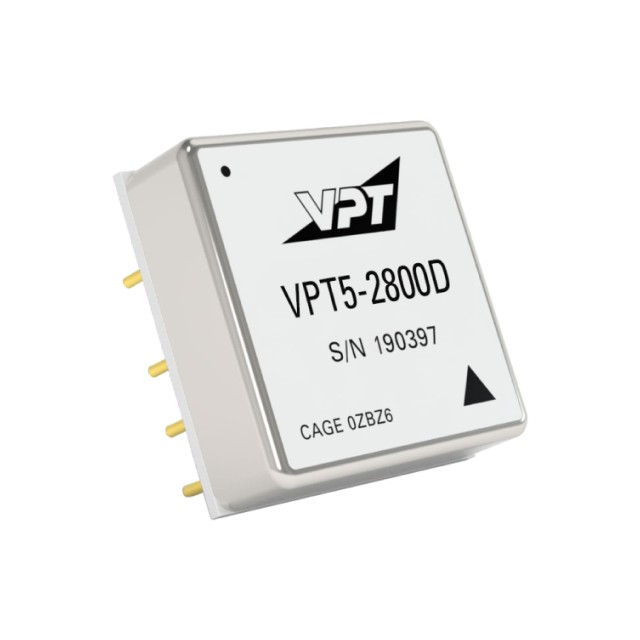

VPT Power VPT5-2812D
Image shown is a representation only
Manufacturer
Manufacturer No
VPT5-2812D
Package
7-DIP Module
Packaging
Bulk
Description
DC/DC CONVERTER 28V +/-12V 5W
Detailed Description
Isolated Module DC DC Converter 2 Output 12V -12V 290mA 15V - 50V Input
Datasheet
Mfr
VPT Power
Type
Isolated Module
Grade
Military
Series
VPT
Features
Baseplate, OCP, Remote On/Off, UVLO
Packaging
Bulk
Efficiency
74%
Applications
Industrial, ITE (Commercial)
Mounting Type
Through Hole
Power (Watts)
5 W
Qualification
MIL-STD-1275, MIL-STD-704
Package / Case
7-DIP Module
Size / Dimension
1.11" L x 1.11" W x 0.40" H (28.1mm x 28.1mm x 10.1mm)
Number of Outputs
2
Voltage - Output 1
12V
Voltage - Output 2
-12V
Voltage - Isolation
500 V
Operating Temperature
-55°C ~ 100°C
Voltage - Input (Max)
50V
Voltage - Input (Min)
15V
Current - Output (Max)
290mA
| Attribute | Value |
|---|---|
| Mfr | VPT Power |
| Type | Isolated Module |
| Grade | Military |
| Series | VPT |
| Features | Baseplate, OCP, Remote On/Off, UVLO |
| Packaging | Bulk |
| Efficiency | 74% |
| Applications | Industrial, ITE (Commercial) |
| Mounting Type | Through Hole |
| Power (Watts) | 5 W |
| Qualification | MIL-STD-1275, MIL-STD-704 |
| Package / Case | 7-DIP Module |
| Size / Dimension | 1.11" L x 1.11" W x 0.40" H (28.1mm x 28.1mm x 10.1mm) |
| Number of Outputs | 2 |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Isolation | 500 V |
| Operating Temperature | -55°C ~ 100°C |
| Voltage - Input (Max) | 50V |
| Voltage - Input (Min) | 15V |
| Current - Output (Max) | 290mA |
