Step1: Product

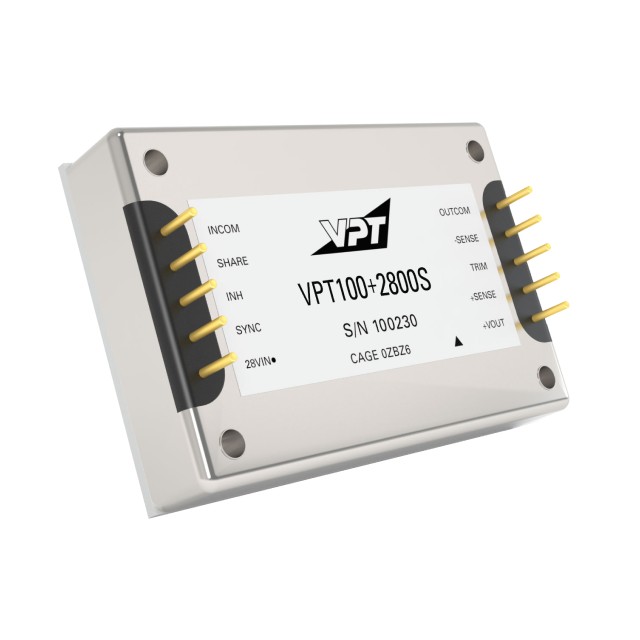

VPT Power VPT100+283R3S
Image shown is a representation only
Manufacturer
Manufacturer No
VPT100+283R3S
Package
12-DIP Module, 10 Leads
Packaging
Bulk
Description
DC DC CONVERTER 3.3V 100W
Detailed Description
Isolated Module DC DC Converter 1 Output 3.3V 20A 16V - 40V Input
DataSheet
Mfr
VPT Power
Type
Isolated Module
Grade
Military
Series
VPT
Features
Adjustable Output, Baseplate, Load Sharing, Remote On/Off, Remote Sense
Packaging
Bulk
Efficiency
90%
Part Status
Active
Applications
Industrial, ITE (Commercial)
Mounting Type
Through Hole
Power (Watts)
66 W
Qualification
MIL-STD-1275, MIL-STD-704
Package / Case
12-DIP Module, 10 Leads
Size / Dimension
2.35" L x 1.55" W x 0.46" H (59.6mm x 39.3mm x 11.8mm)
Number of Outputs
1
Voltage - Output 1
3.3V
Voltage - Isolation
500 V
Operating Temperature
-55°C ~ 100°C
Voltage - Input (Max)
40V
Voltage - Input (Min)
16V
Current - Output (Max)
20A
| Attribute | Value |
|---|---|
| Mfr | VPT Power |
| Type | Isolated Module |
| Grade | Military |
| Series | VPT |
| Features | Adjustable Output, Baseplate, Load Sharing, Remote On/Off, Remote Sense |
| Packaging | Bulk |
| Efficiency | 90% |
| Part Status | Active |
| Applications | Industrial, ITE (Commercial) |
| Mounting Type | Through Hole |
| Power (Watts) | 66 W |
| Qualification | MIL-STD-1275, MIL-STD-704 |
| Package / Case | 12-DIP Module, 10 Leads |
| Size / Dimension | 2.35" L x 1.55" W x 0.46" H (59.6mm x 39.3mm x 11.8mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 3.3V |
| Voltage - Isolation | 500 V |
| Operating Temperature | -55°C ~ 100°C |
| Voltage - Input (Max) | 40V |
| Voltage - Input (Min) | 16V |
| Current - Output (Max) | 20A |
