Step1: Product
Vishay Siliconix DG408LEDN-T1-GE4

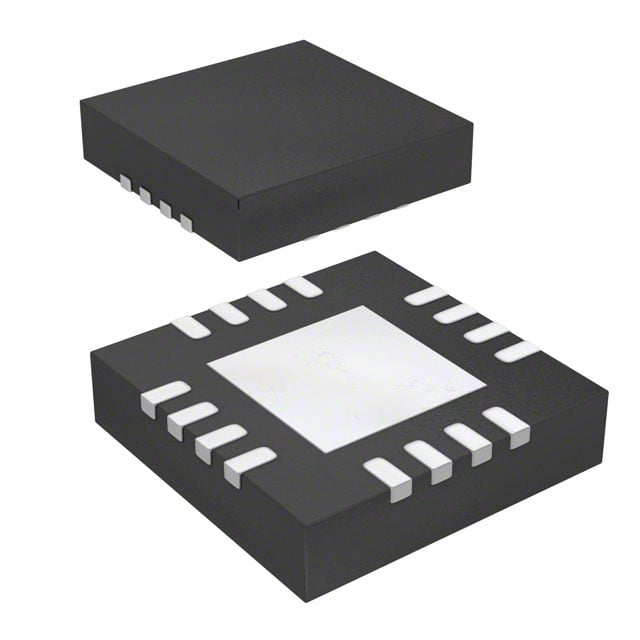

Image shown is a representation only
Manufacturer
Manufacturer No
DG408LEDN-T1-GE4
Quantity
48
Availability
In Stock
Package
16-VFQFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
IC MUX 8:1 23OHM 16QFN
Detailed Description
1 Circuit IC Switch 8:1 23Ohm 16-QFN (3x3)
Datasheet
Crosstalk
-98dB @ 100kHz
Packaging
Tape & Reel (TR); Cut Tape (CT)
Manufacturer
Vishay Siliconix
Mounting Type
Surface Mount
Package / Case
16-VFQFN Exposed Pad
Charge Injection
11pC
Number of Circuits
1
Base Product Number
DG408
Operating Temperature
-40°C ~ 85°C (TA)
Supplier Device Package
16-QFN (3x3)
On-State Resistance (Max)
23Ohm
Voltage - Supply, Dual (V±)
±3V ~ 8V
Switch Time (Ton, Toff) (Max)
72ns, 47ns
Voltage - Supply, Single (V+)
3V ~ 16V
Current - Leakage (IS(off)) (Max)
1nA
Multiplexer/Demultiplexer Circuit
8:1
Channel-to-Channel Matching (ΔRon)
1Ohm
Channel Capacitance (CS(off), CD(off))
5.5pF, 25pF
| Attribute | Value |
|---|---|
| Crosstalk | -98dB @ 100kHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Manufacturer | Vishay Siliconix |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad |
| Charge Injection | 11pC |
| Number of Circuits | 1 |
| Base Product Number | DG408 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 16-QFN (3x3) |
| On-State Resistance (Max) | 23Ohm |
| Voltage - Supply, Dual (V±) | ±3V ~ 8V |
| Switch Time (Ton, Toff) (Max) | 72ns, 47ns |
| Voltage - Supply, Single (V+) | 3V ~ 16V |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Channel-to-Channel Matching (ΔRon) | 1Ohm |
| Channel Capacitance (CS(off), CD(off)) | 5.5pF, 25pF |
