Step1: Product
Vishay Siliconix DG419LEDY-T1-GE4

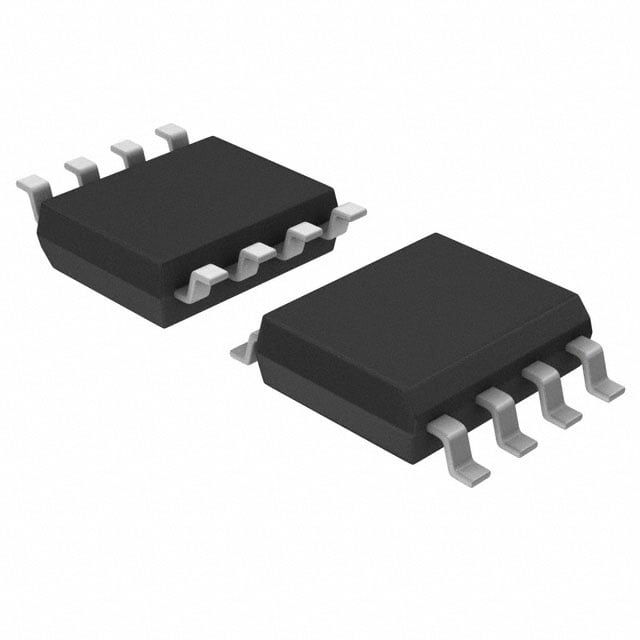

Image shown is a representation only
Manufacturer
Manufacturer No
DG419LEDY-T1-GE4
Quantity
2492
Availability
In Stock
Package
8-SOIC (0.154", 3.90mm Width)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC SWITCH SPDT X 1 18OHM 8SO
Detailed Description
1 Circuit IC Switch 1:2 18Ohm 8-SO
DataSheet
Crosstalk
-72dB @ 1MHz
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Manufacturer
Vishay Siliconix
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154", 3.90mm Width)
Switch Circuit
SPDT
Charge Injection
26pC
Number of Circuits
1
Base Product Number
DG419
Operating Temperature
-40°C ~ 85°C
Supplier Device Package
8-SO
On-State Resistance (Max)
18Ohm
Voltage - Supply, Dual (V±)
±3V ~ 8V
Switch Time (Ton, Toff) (Max)
40ns, 35ns
Voltage - Supply, Single (V+)
3V ~ 16V
Current - Leakage (IS(off)) (Max)
10nA
Multiplexer/Demultiplexer Circuit
1:2
Channel Capacitance (CS(off), CD(off))
6pF, 20pF
| Attribute | Value |
|---|---|
| Crosstalk | -72dB @ 1MHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Manufacturer | Vishay Siliconix |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Switch Circuit | SPDT |
| Charge Injection | 26pC |
| Number of Circuits | 1 |
| Base Product Number | DG419 |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 8-SO |
| On-State Resistance (Max) | 18Ohm |
| Voltage - Supply, Dual (V±) | ±3V ~ 8V |
| Switch Time (Ton, Toff) (Max) | 40ns, 35ns |
| Voltage - Supply, Single (V+) | 3V ~ 16V |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Multiplexer/Demultiplexer Circuit | 1:2 |
| Channel Capacitance (CS(off), CD(off)) | 6pF, 20pF |
