Step1: Product

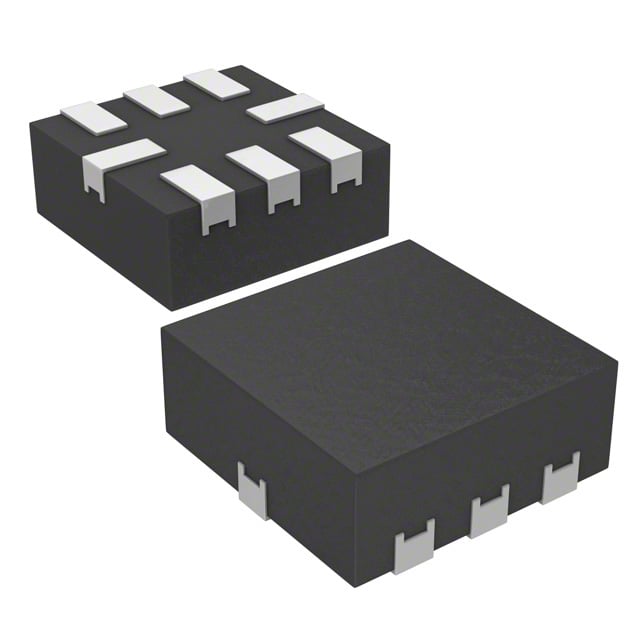

Vishay Siliconix DG2728DN-T1-E4
Image shown is a representation only
Manufacturer
Manufacturer No
DG2728DN-T1-E4
Package
8-UFQFN
Packaging
Tape & Reel (TR)
Description
IC SW SPST-NCX2 1OHM 8MINIQFN
Detailed Description
2 Circuit IC Switch 1:1 1Ohm 8-miniQFN (1.4x1.4)
DataSheet
Crosstalk
-64dB @ 1MHz
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Manufacturer
Vishay Siliconix
Mounting Type
Surface Mount
-3db Bandwidth
252MHz
Package / Case
8-UFQFN
Switch Circuit
SPST - NC
Charge Injection
1.2pC
Number of Circuits
2
Base Product Number
DG2728
Operating Temperature
-40°C ~ 85°C (TA)
Supplier Device Package
8-miniQFN (1.4x1.4)
On-State Resistance (Max)
1Ohm
Switch Time (Ton, Toff) (Max)
67ns, 40ns
Voltage - Supply, Single (V+)
1.6V ~ 4.3V
Current - Leakage (IS(off)) (Max)
100nA
Multiplexer/Demultiplexer Circuit
1:1
Channel-to-Channel Matching (ΔRon)
100mOhm
Channel Capacitance (CS(off), CD(off))
31pF, 31pF
| Attribute | Value |
|---|---|
| Crosstalk | -64dB @ 1MHz |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Manufacturer | Vishay Siliconix |
| Mounting Type | Surface Mount |
| -3db Bandwidth | 252MHz |
| Package / Case | 8-UFQFN |
| Switch Circuit | SPST - NC |
| Charge Injection | 1.2pC |
| Number of Circuits | 2 |
| Base Product Number | DG2728 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 8-miniQFN (1.4x1.4) |
| On-State Resistance (Max) | 1Ohm |
| Switch Time (Ton, Toff) (Max) | 67ns, 40ns |
| Voltage - Supply, Single (V+) | 1.6V ~ 4.3V |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Channel Capacitance (CS(off), CD(off)) | 31pF, 31pF |
