Vishay Siliconix DG2502DB-T2-GE1

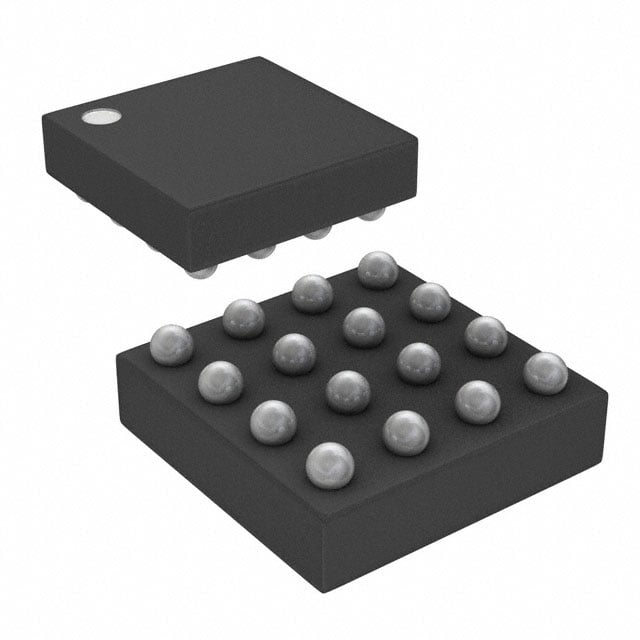

Image shown is a representation only
Manufacturer
Manufacturer No
DG2502DB-T2-GE1
Package
16-XFBGA, WLCSP
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC SW SPST-NOX4 200OHM 16WCSP
Detailed Description
4 Circuit IC Switch 1:1 200Ohm 16-WCSP (1.44x1.44)
DataSheet
Crosstalk
-83dB @ 1MHz
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Manufacturer
Vishay Siliconix
Mounting Type
Surface Mount
-3db Bandwidth
550MHz
Package / Case
16-XFBGA, WLCSP
Switch Circuit
SPST - NO
Charge Injection
-2pC
Number of Circuits
4
Base Product Number
DG2502
Operating Temperature
-40°C ~ 85°C (TA)
Supplier Device Package
16-WCSP (1.44x1.44)
On-State Resistance (Max)
200Ohm
Switch Time (Ton, Toff) (Max)
100ns, 60ns
Voltage - Supply, Single (V+)
1.8V ~ 5.5V
Current - Leakage (IS(off)) (Max)
400pA
Multiplexer/Demultiplexer Circuit
1:1
Channel Capacitance (CS(off), CD(off))
2.9pF, 2.8pF
| Attribute | Value |
|---|---|
| Crosstalk | -83dB @ 1MHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Manufacturer | Vishay Siliconix |
| Mounting Type | Surface Mount |
| -3db Bandwidth | 550MHz |
| Package / Case | 16-XFBGA, WLCSP |
| Switch Circuit | SPST - NO |
| Charge Injection | -2pC |
| Number of Circuits | 4 |
| Base Product Number | DG2502 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 16-WCSP (1.44x1.44) |
| On-State Resistance (Max) | 200Ohm |
| Switch Time (Ton, Toff) (Max) | 100ns, 60ns |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Current - Leakage (IS(off)) (Max) | 400pA |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel Capacitance (CS(off), CD(off)) | 2.9pF, 2.8pF |
