Step1: Product
Vishay Siliconix 3N163-2

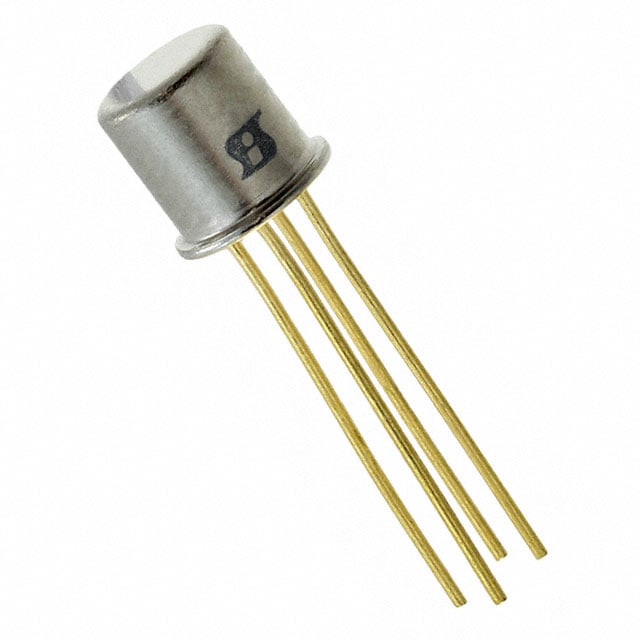

Image shown is a representation only
Manufacturer
Manufacturer No
3N163-2
Package
TO-206AF, TO-72-4 Metal Can
Packaging
Tube
Description
MOSFET P-CH 40V 50MA TO72
Detailed Description
P-Channel 40 V 50mA (Ta) 375mW (Ta) Through Hole TO-72
DataSheet
Mfr
Vishay Siliconix
FET Type
P-Channel
Packaging
Tube
Vgs (Max)
±30V
Technology
MOSFET (Metal Oxide)
Part Status
Obsolete
Mounting Type
Through Hole
Package / Case
TO-206AF, TO-72-4 Metal Can
Vgs(th) (Max) @ Id
5V @ 10µA
Base Product Number
3N163
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
250Ohm @ 100µA, 20V
Power Dissipation (Max)
375mW (Ta)
Supplier Device Package
TO-72
Drain to Source Voltage (Vdss)
40 V
Input Capacitance (Ciss) (Max) @ Vds
3.5 pF @ 15 V
Drive Voltage (Max Rds On, Min Rds On)
20V
Current - Continuous Drain (Id) @ 25°C
50mA (Ta)
| Attribute | Value |
|---|---|
| Mfr | Vishay Siliconix |
| FET Type | P-Channel |
| Packaging | Tube |
| Vgs (Max) | ±30V |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Obsolete |
| Mounting Type | Through Hole |
| Package / Case | TO-206AF, TO-72-4 Metal Can |
| Vgs(th) (Max) @ Id | 5V @ 10µA |
| Base Product Number | 3N163 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 250Ohm @ 100µA, 20V |
| Power Dissipation (Max) | 375mW (Ta) |
| Supplier Device Package | TO-72 |
| Drain to Source Voltage (Vdss) | 40 V |
| Input Capacitance (Ciss) (Max) @ Vds | 3.5 pF @ 15 V |
| Drive Voltage (Max Rds On, Min Rds On) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 50mA (Ta) |
