Step1: Product
Vishay General Semiconductor - Diodes Division VS-VSKU26/14

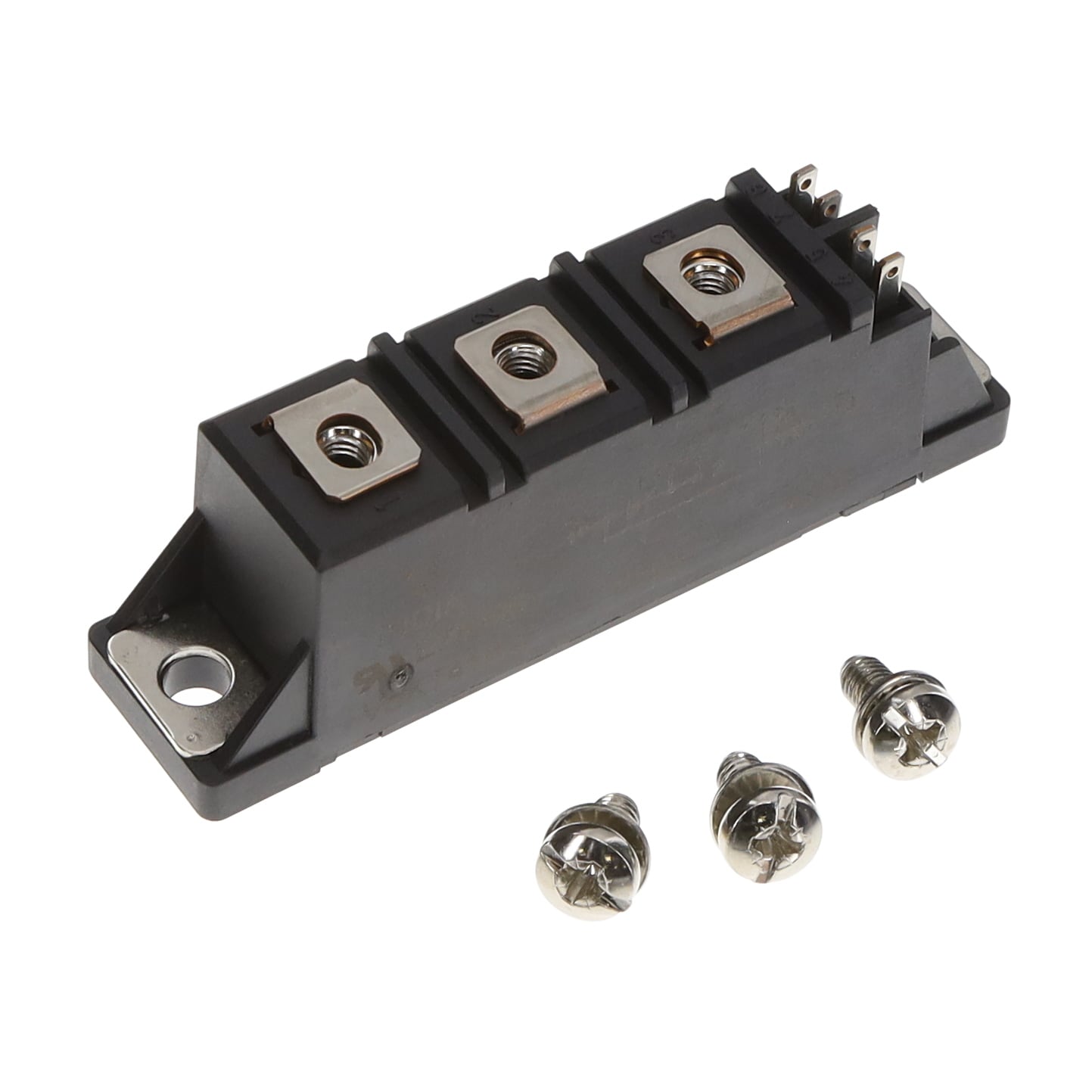

Image shown is a representation only
Manufacturer
Manufacturer No
VS-VSKU26/14
Package
ADD-A-PAK (3 + 4)
Packaging
Bulk
Description
SCR MODULE 1.4KV 60A ADD-A-PAK
Detailed Description
SCR Module 1.4 kV 60 A Common Cathode - All SCRs Chassis Mount ADD-A-PAK (3 + 4)
DataSheet
Packaging
Bulk
Structure
Common Cathode - All SCRs
Part Status
Active
Manufacturer
Vishay General Semiconductor - Diodes Division
Mounting Type
Chassis Mount
Package / Case
ADD-A-PAK (3 + 4)
Base Product Number
VSKU26
Voltage - Off State
1.4 kV
Operating Temperature
-40°C ~ 125°C (TJ)
Number of SCRs, Diodes
2 SCRs
Current - Hold (Ih) (Max)
200 mA
Current - Gate Trigger (Igt) (Max)
150 mA
Current - On State (It (AV)) (Max)
27 A
Voltage - Gate Trigger (Vgt) (Max)
2.5 V
Current - On State (It (RMS)) (Max)
60 A
Current - Non Rep. Surge 50, 60Hz (Itsm)
400A, 420A
| Attribute | Value |
|---|---|
| Packaging | Bulk |
| Structure | Common Cathode - All SCRs |
| Part Status | Active |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Mounting Type | Chassis Mount |
| Package / Case | ADD-A-PAK (3 + 4) |
| Base Product Number | VSKU26 |
| Voltage - Off State | 1.4 kV |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Number of SCRs, Diodes | 2 SCRs |
| Current - Hold (Ih) (Max) | 200 mA |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - On State (It (AV)) (Max) | 27 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Current - On State (It (RMS)) (Max) | 60 A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 400A, 420A |
