Step1: Product
Vishay General Semiconductor - Diodes Division VS-VSKCS209/150

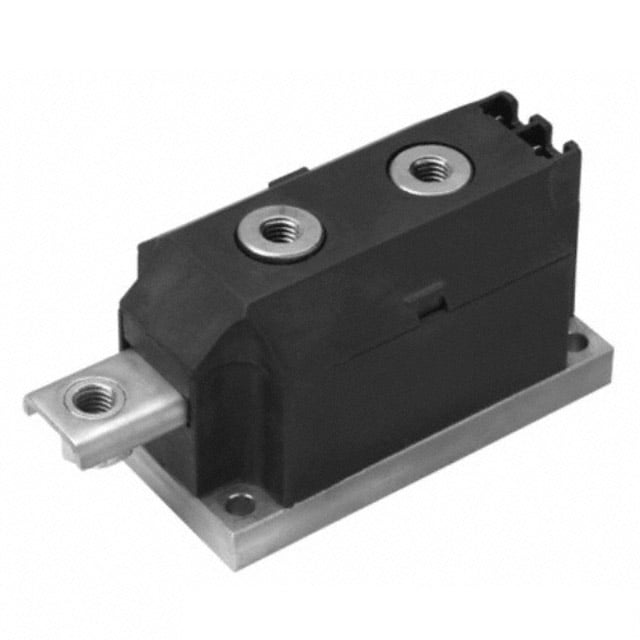

Image shown is a representation only
Manufacturer
Manufacturer No
VS-VSKCS209/150
Quantity
3
Availability
In Stock
Package
ADD-A-PAK (3)
Packaging
Bulk
Description
DIODE MOD SCHOTTKY 150V ADDAPAK
Detailed Description
Diode Array 1 Pair Common Cathode 150 V 100A Chassis Mount ADD-A-PAK (3)
DataSheet
Speed
Fast Recovery =< 500ns, > 200mA (Io)
Packaging
Bulk
Technology
Schottky
Part Status
Active
Manufacturer
Vishay General Semiconductor - Diodes Division
Mounting Type
Chassis Mount
Package / Case
ADD-A-PAK (3)
Base Product Number
VSKCS209
Diode Configuration
1 Pair Common Cathode
Supplier Device Package
ADD-A-PAK®
Current - Reverse Leakage @ Vr
6 mA @ 150 V
Voltage - DC Reverse (Vr) (Max)
150 V
Operating Temperature - Junction
-55°C ~ 150°C
Voltage - Forward (Vf) (Max) @ If
1.01 V @ 100 A
Current - Average Rectified (Io) (per Diode)
100A
| Attribute | Value |
|---|---|
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Packaging | Bulk |
| Technology | Schottky |
| Part Status | Active |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Mounting Type | Chassis Mount |
| Package / Case | ADD-A-PAK (3) |
| Base Product Number | VSKCS209 |
| Diode Configuration | 1 Pair Common Cathode |
| Supplier Device Package | ADD-A-PAK® |
| Current - Reverse Leakage @ Vr | 6 mA @ 150 V |
| Voltage - DC Reverse (Vr) (Max) | 150 V |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - Forward (Vf) (Max) @ If | 1.01 V @ 100 A |
| Current - Average Rectified (Io) (per Diode) | 100A |
