Vishay Dale IMS05SH272J

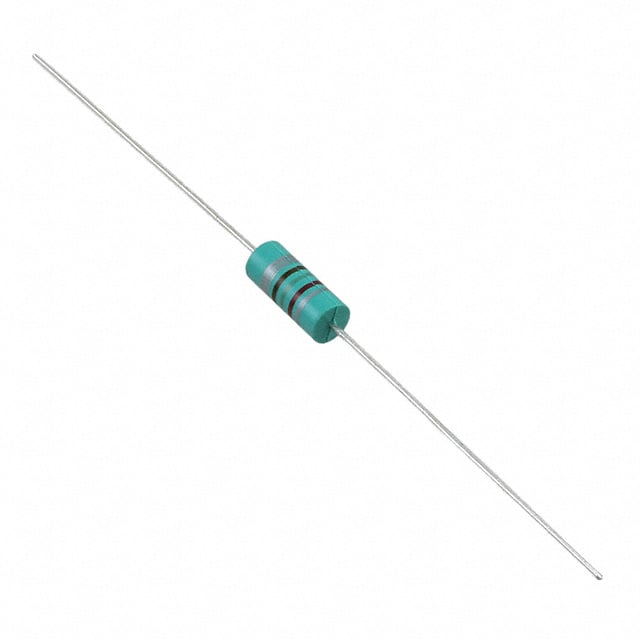

Image shown is a representation only
Manufacturer
Manufacturer No
IMS05SH272J
Package
Axial
Packaging
Bag
Description
FIXED IND 2.7MH 40MA 47.3 OHM TH
Detailed Description
2.7 mH Shielded Molded Inductor 40 mA 47.3Ohm Max Axial
DataSheet
Mfr
Vishay Dale
Type
Molded
Series
IMS-5
Q @ Freq
45 @ 250kHz
Packaging
Bag
Shielding
Shielded
Tolerance
±5%
Inductance
2.7 mH
Part Status
Obsolete
Mounting Type
Through Hole
Package / Case
Axial
Material - Core
Ferrite
Size / Dimension
0.162" Dia x 0.410" L (4.11mm x 10.41mm)
DC Resistance (DCR)
47.3Ohm Max
Current Rating (Amps)
40 mA
Operating Temperature
-55°C ~ 105°C
Frequency - Self Resonant
920kHz
Current - Saturation (Isat)
25mA
Inductance Frequency - Test
250 kHz
| Attribute | Value |
|---|---|
| Mfr | Vishay Dale |
| Type | Molded |
| Series | IMS-5 |
| Q @ Freq | 45 @ 250kHz |
| Packaging | Bag |
| Shielding | Shielded |
| Tolerance | ±5% |
| Inductance | 2.7 mH |
| Part Status | Obsolete |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Material - Core | Ferrite |
| Size / Dimension | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) |
| DC Resistance (DCR) | 47.3Ohm Max |
| Current Rating (Amps) | 40 mA |
| Operating Temperature | -55°C ~ 105°C |
| Frequency - Self Resonant | 920kHz |
| Current - Saturation (Isat) | 25mA |
| Inductance Frequency - Test | 250 kHz |
