Step1: Product

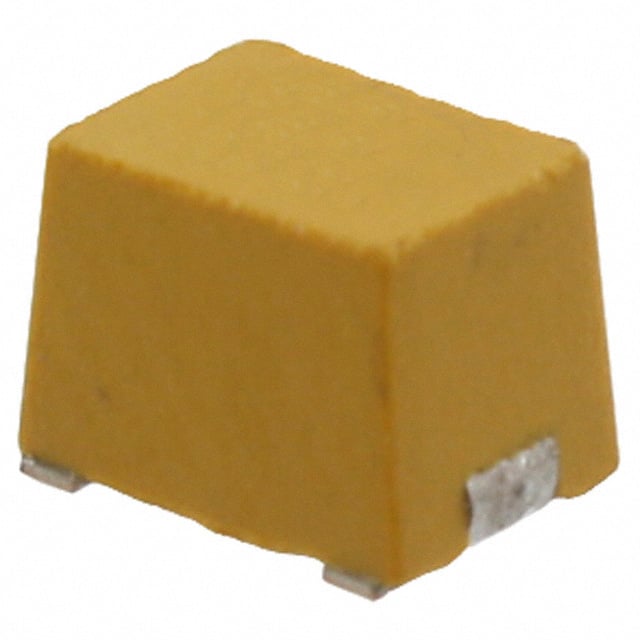

Vishay Dale IMC1812BN1R0J
Image shown is a representation only
Manufacturer
Manufacturer No
IMC1812BN1R0J
Package
1812 (4532 Metric)
Packaging
Bulk
Description
FIXED IND 1UH 450MA 500 MOHM SMD
Detailed Description
1 µH Unshielded Drum Core, Wirewound Inductor 450 mA 500mOhm Max 1812 (4532 Metric)
DataSheet
Mfr
Vishay Dale
Type
Drum Core, Wirewound
Series
IMC-1812
Q @ Freq
50 @ 7.96MHz
Packaging
Bulk
Shielding
Unshielded
Tolerance
±5%
Inductance
1 µH
Part Status
Active
Mounting Type
Surface Mount
Package / Case
1812 (4532 Metric)
Material - Core
Iron Powder
Size / Dimension
0.177" L x 0.126" W (4.50mm x 3.20mm)
DC Resistance (DCR)
500mOhm Max
Current Rating (Amps)
450 mA
Height - Seated (Max)
0.134" (3.40mm)
Operating Temperature
-55°C ~ 125°C
Supplier Device Package
1812
Frequency - Self Resonant
100MHz
Inductance Frequency - Test
7.96 MHz
| Attribute | Value |
|---|---|
| Mfr | Vishay Dale |
| Type | Drum Core, Wirewound |
| Series | IMC-1812 |
| Q @ Freq | 50 @ 7.96MHz |
| Packaging | Bulk |
| Shielding | Unshielded |
| Tolerance | ±5% |
| Inductance | 1 µH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric) |
| Material - Core | Iron Powder |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| DC Resistance (DCR) | 500mOhm Max |
| Current Rating (Amps) | 450 mA |
| Height - Seated (Max) | 0.134" (3.40mm) |
| Operating Temperature | -55°C ~ 125°C |
| Supplier Device Package | 1812 |
| Frequency - Self Resonant | 100MHz |
| Inductance Frequency - Test | 7.96 MHz |
