Step1: Product
Vishay Dale IFSC1515AHER8R2M01

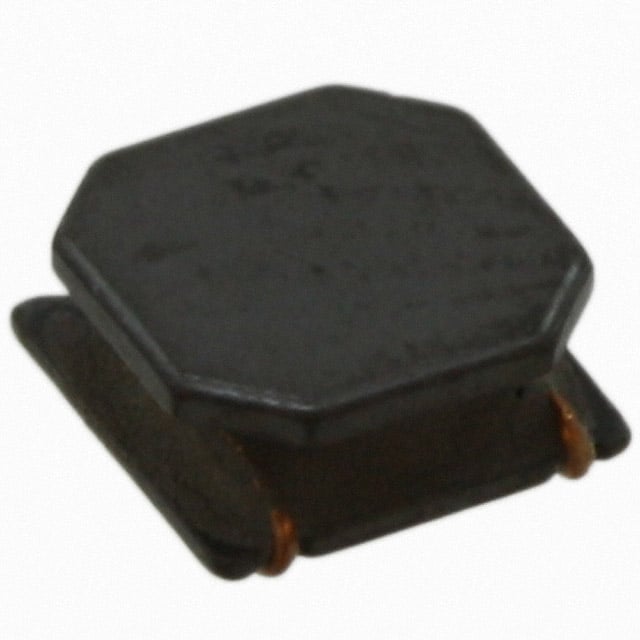

Image shown is a representation only
Manufacturer
Manufacturer No
IFSC1515AHER8R2M01
Quantity
24
Availability
In Stock
Package
Nonstandard
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
FIXED IND 8.2UH 1.4A 132 MOHM
Detailed Description
8.2 µH Shielded Inductor 1.4 A 132mOhm Max Nonstandard
DataSheet
Mfr
Vishay Dale
Series
IFSC-1515AH-01
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shielding
Shielded
Tolerance
±20%
Inductance
8.2 µH
Part Status
Active
Mounting Type
Surface Mount
Package / Case
Nonstandard
Size / Dimension
0.157" L x 0.157" W (4.00mm x 4.00mm)
DC Resistance (DCR)
132mOhm Max
Current Rating (Amps)
1.4 A
Height - Seated (Max)
0.075" (1.90mm)
Operating Temperature
-55°C ~ 125°C
Current - Saturation (Isat)
1.4A
Inductance Frequency - Test
100 kHz
| Attribute | Value |
|---|---|
| Mfr | Vishay Dale |
| Series | IFSC-1515AH-01 |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 8.2 µH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| DC Resistance (DCR) | 132mOhm Max |
| Current Rating (Amps) | 1.4 A |
| Height - Seated (Max) | 0.075" (1.90mm) |
| Operating Temperature | -55°C ~ 125°C |
| Current - Saturation (Isat) | 1.4A |
| Inductance Frequency - Test | 100 kHz |
