Step1: Product
Vishay Dale Thin Film M55342H02B75D0RWS

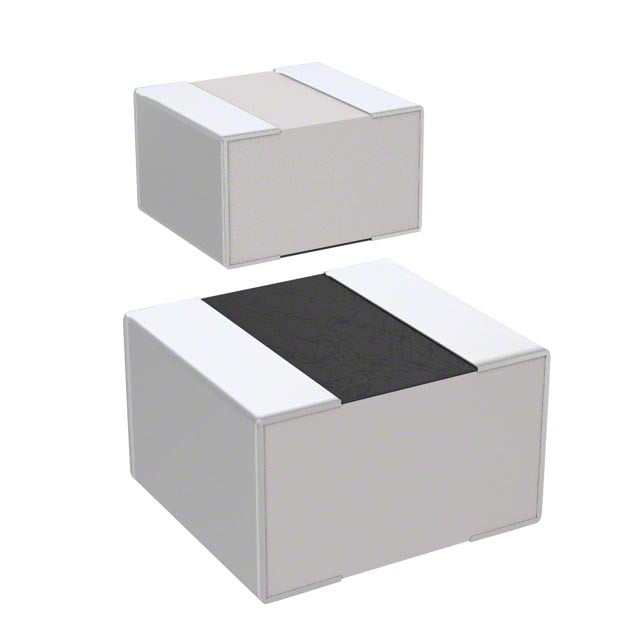

Image shown is a representation only
Manufacturer
Manufacturer No
M55342H02B75D0RWS
Package
0505 (1313 Metric)
Packaging
Tray
Description
RES SMD 75 OHM 1% 1/8W 0505
Detailed Description
75 Ohms ±1% 0.125W, 1/8W Chip Resistor 0505 (1313 Metric) Military, Non-Inductive Thin Film
Datasheet
Mfr
Vishay Dale Thin Film
Series
Military, MIL-PRF-55342, RM0505
Features
Military, Non-Inductive
Packaging
Tray
Tolerance
±1%
Resistance
75 Ohms
Composition
Thin Film
Failure Rate
R (0.01%)
Power (Watts)
0.125W, 1/8W
Package / Case
0505 (1313 Metric)
Size / Dimension
0.055" L x 0.050" W (1.40mm x 1.27mm)
Base Product Number
M55342
Height - Seated (Max)
0.033" (0.84mm)
Operating Temperature
-55°C ~ 150°C
Number of Terminations
2
Supplier Device Package
0505
Temperature Coefficient
±50ppm/°C
| Attribute | Value |
|---|---|
| Mfr | Vishay Dale Thin Film |
| Series | Military, MIL-PRF-55342, RM0505 |
| Features | Military, Non-Inductive |
| Packaging | Tray |
| Tolerance | ±1% |
| Resistance | 75 Ohms |
| Composition | Thin Film |
| Failure Rate | R (0.01%) |
| Power (Watts) | 0.125W, 1/8W |
| Package / Case | 0505 (1313 Metric) |
| Size / Dimension | 0.055" L x 0.050" W (1.40mm x 1.27mm) |
| Base Product Number | M55342 |
| Height - Seated (Max) | 0.033" (0.84mm) |
| Operating Temperature | -55°C ~ 150°C |
| Number of Terminations | 2 |
| Supplier Device Package | 0505 |
| Temperature Coefficient | ±50ppm/°C |
