Step1: Product
Vishay Dale Thin Film M55342E03B100DRWS

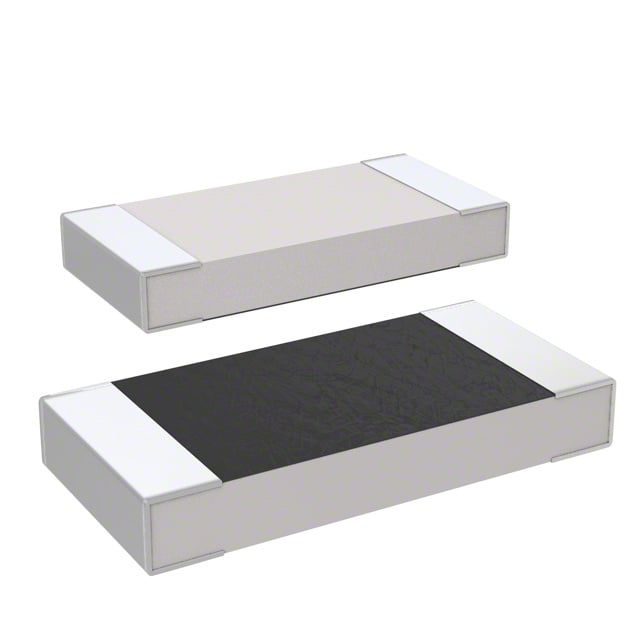

Image shown is a representation only
Manufacturer
Manufacturer No
M55342E03B100DRWS
Package
Nonstandard
Packaging
Tray
Description
RES SMD 100 OHM 1% 1/5W 1005
Detailed Description
100 Ohms ±1% 0.2W, 1/5W Chip Resistor Nonstandard Military, Non-Inductive Thin Film
Datasheet
Mfr
Vishay Dale Thin Film
Series
Military, MIL-PRF-55342, RM1005
Features
Military, Non-Inductive
Packaging
Tray
Tolerance
±1%
Resistance
100 Ohms
Composition
Thin Film
Failure Rate
R (0.01%)
Power (Watts)
0.2W, 1/5W
Package / Case
Nonstandard
Size / Dimension
0.105" L x 0.050" W (2.67mm x 1.27mm)
Base Product Number
M55342
Height - Seated (Max)
0.033" (0.84mm)
Operating Temperature
-55°C ~ 150°C
Number of Terminations
2
Supplier Device Package
1005
Temperature Coefficient
±25ppm/°C
| Attribute | Value |
|---|---|
| Mfr | Vishay Dale Thin Film |
| Series | Military, MIL-PRF-55342, RM1005 |
| Features | Military, Non-Inductive |
| Packaging | Tray |
| Tolerance | ±1% |
| Resistance | 100 Ohms |
| Composition | Thin Film |
| Failure Rate | R (0.01%) |
| Power (Watts) | 0.2W, 1/5W |
| Package / Case | Nonstandard |
| Size / Dimension | 0.105" L x 0.050" W (2.67mm x 1.27mm) |
| Base Product Number | M55342 |
| Height - Seated (Max) | 0.033" (0.84mm) |
| Operating Temperature | -55°C ~ 150°C |
| Number of Terminations | 2 |
| Supplier Device Package | 1005 |
| Temperature Coefficient | ±25ppm/°C |
