Step1: Product
Vishay Beyschlag/Draloric/BC Components MAL225957471E3

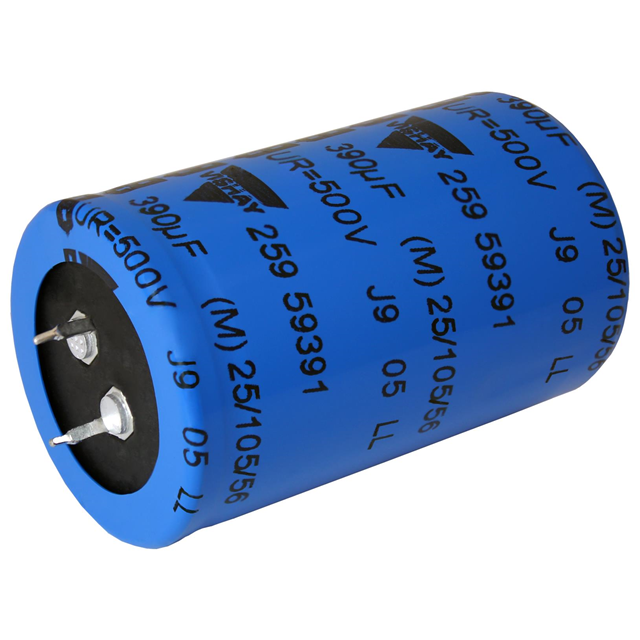

Image shown is a representation only
Manufacturer
Manufacturer No
MAL225957471E3
Package
Radial, Can - Snap-In
Packaging
Bulk
Description
CAP ALUM 470UF 20% 450V SNAP TH
Detailed Description
470 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 280mOhm @ 100Hz 3000 Hrs @ 105°C
DataSheet
Mfr
Vishay Beyschlag/Draloric/BC Components
Series
259 PHM-SI
Impedance
200 mOhms
Packaging
Bulk
Tolerance
±20%
Capacitance
470 µF
Part Status
Active
Applications
General Purpose
Lead Spacing
0.394" (10.00mm)
Polarization
Polar
Mounting Type
Through Hole
Package / Case
Radial, Can - Snap-In
Voltage - Rated
450 V
Lifetime @ Temp.
3000 Hrs @ 105°C
Size / Dimension
1.378" Dia (35.00mm)
Height - Seated (Max)
1.850" (47.00mm)
Operating Temperature
-40°C ~ 105°C
Ripple Current @ Low Frequency
2.36 A @ 100 Hz
Ripple Current @ High Frequency
3.54 A @ 10 kHz
ESR (Equivalent Series Resistance)
280mOhm @ 100Hz
| Attribute | Value |
|---|---|
| Mfr | Vishay Beyschlag/Draloric/BC Components |
| Series | 259 PHM-SI |
| Impedance | 200 mOhms |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 470 µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | 0.394" (10.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Voltage - Rated | 450 V |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Operating Temperature | -40°C ~ 105°C |
| Ripple Current @ Low Frequency | 2.36 A @ 100 Hz |
| Ripple Current @ High Frequency | 3.54 A @ 10 kHz |
| ESR (Equivalent Series Resistance) | 280mOhm @ 100Hz |
