Step1: Product

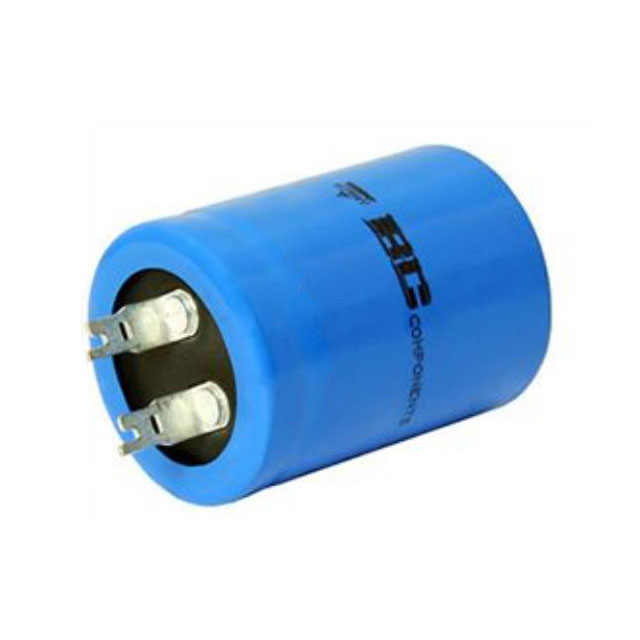

Vishay Beyschlag/Draloric/BC Components MAL205016153E3
Image shown is a representation only
Manufacturer
Manufacturer No
MAL205016153E3
Package
Radial, Can - Solder Lug
Packaging
Tape & Box (TB)
Description
CAP ALUM 15000UF 25V SOLDER LUG
Detailed Description
15000 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - Solder Lug 29mOhm @ 100Hz 15000 Hrs @ 85°C
DataSheet
Mfr
Vishay Beyschlag/Draloric/BC Components
Series
050 PED-PW
Impedance
22 mOhms
Packaging
Tape & Box (TB)
Tolerance
-10%, +30%
Capacitance
15000 µF
Part Status
Active
Applications
General Purpose
Lead Spacing
0.394" (10.00mm)
Polarization
Polar
Mounting Type
Chassis Mount
Package / Case
Radial, Can - Solder Lug
Voltage - Rated
25 V
Lifetime @ Temp.
15000 Hrs @ 85°C
Size / Dimension
1.575" Dia (40.00mm)
Height - Seated (Max)
2.047" (52.00mm)
Operating Temperature
-40°C ~ 85°C
Ripple Current @ Low Frequency
5 A @ 100 Hz
ESR (Equivalent Series Resistance)
29mOhm @ 100Hz
| Attribute | Value |
|---|---|
| Mfr | Vishay Beyschlag/Draloric/BC Components |
| Series | 050 PED-PW |
| Impedance | 22 mOhms |
| Packaging | Tape & Box (TB) |
| Tolerance | -10%, +30% |
| Capacitance | 15000 µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | 0.394" (10.00mm) |
| Polarization | Polar |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Solder Lug |
| Voltage - Rated | 25 V |
| Lifetime @ Temp. | 15000 Hrs @ 85°C |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Operating Temperature | -40°C ~ 85°C |
| Ripple Current @ Low Frequency | 5 A @ 100 Hz |
| ESR (Equivalent Series Resistance) | 29mOhm @ 100Hz |
