Step1: Product
Vishay Beyschlag/Draloric/BC Components MAL209629681E3

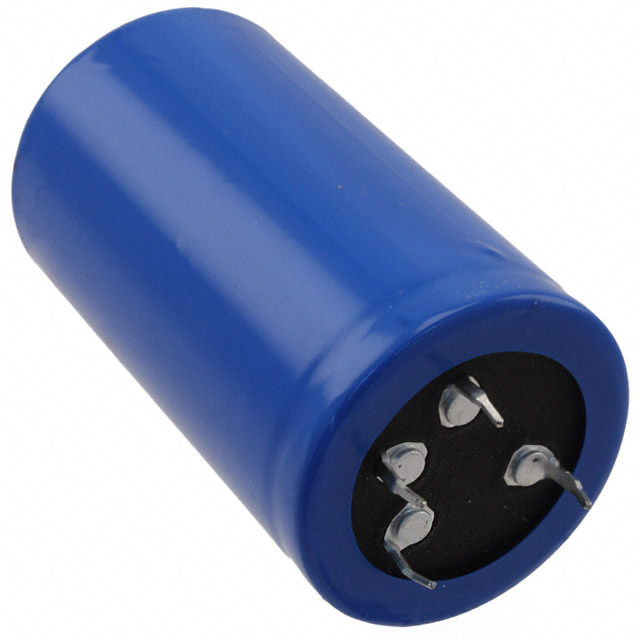

Image shown is a representation only
Manufacturer
Manufacturer No
MAL209629681E3
Package
Radial, Can - Snap-In - 4 Lead
Packaging
Bulk
Description
CAP ALUM 680UF 20% 500V SNAP TH
Detailed Description
680 µF 500 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In - 4 Lead 277mOhm 5000 Hrs @ 85°C
DataSheet
Mfr
Vishay Beyschlag/Draloric/BC Components
Series
096 PLL-4TSI
Impedance
247 mOhms
Packaging
Bulk
Tolerance
±20%
Capacitance
680 µF
Part Status
Active
Applications
General Purpose
Lead Spacing
0.886" (22.50mm)
Mounting Type
Through Hole
Package / Case
Radial, Can - Snap-In - 4 Lead
Voltage - Rated
500 V
Lifetime @ Temp.
5000 Hrs @ 85°C
Size / Dimension
1.575" Dia (40.00mm)
Height - Seated (Max)
2.756" (70.00mm)
Operating Temperature
-40°C ~ 85°C
Ripple Current @ High Frequency
6.3 A @ 10 kHz
ESR (Equivalent Series Resistance)
277mOhm
| Attribute | Value |
|---|---|
| Mfr | Vishay Beyschlag/Draloric/BC Components |
| Series | 096 PLL-4TSI |
| Impedance | 247 mOhms |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 680 µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | 0.886" (22.50mm) |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
| Voltage - Rated | 500 V |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 2.756" (70.00mm) |
| Operating Temperature | -40°C ~ 85°C |
| Ripple Current @ High Frequency | 6.3 A @ 10 kHz |
| ESR (Equivalent Series Resistance) | 277mOhm |
