Step1: Product
Vishay Beyschlag/Draloric/BC Components MAL210276332E3

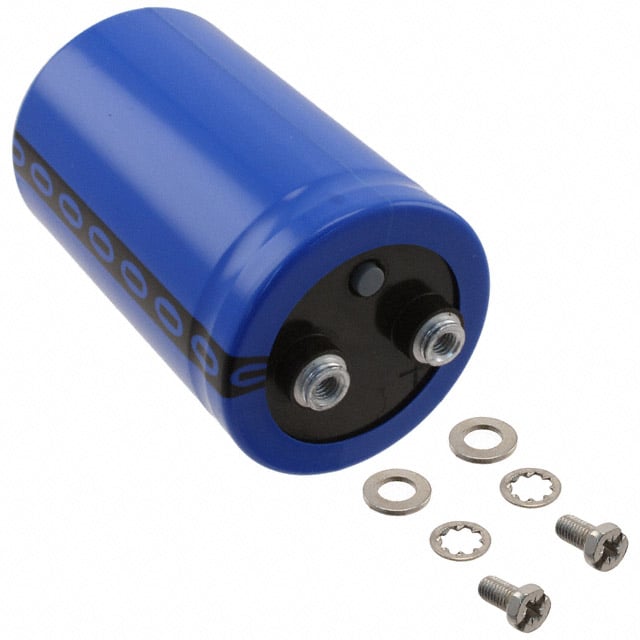

Image shown is a representation only
Manufacturer
Manufacturer No
MAL210276332E3
Package
Radial, Can - Screw Terminals
Packaging
Bulk
Description
CAP ALUM 3300UF 20% 400V SCREW
Detailed Description
3300 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 40mOhm @ 100Hz 10000 Hrs @ 85°C
DataSheet
Mfr
Vishay Beyschlag/Draloric/BC Components
Series
102 PHR-ST
Impedance
27 mOhms
Packaging
Bulk
Tolerance
±20%
Capacitance
3300 µF
Part Status
Active
Applications
General Purpose
Lead Spacing
1.122" (28.50mm)
Polarization
Polar
Mounting Type
Chassis Mount
Package / Case
Radial, Can - Screw Terminals
Voltage - Rated
400 V
Lifetime @ Temp.
10000 Hrs @ 85°C
Size / Dimension
2.559" Dia (65.00mm)
Height - Seated (Max)
4.358" (110.70mm)
Operating Temperature
-40°C ~ 85°C
Ripple Current @ Low Frequency
12.1 A @ 100 Hz
ESR (Equivalent Series Resistance)
40mOhm @ 100Hz
| Attribute | Value |
|---|---|
| Mfr | Vishay Beyschlag/Draloric/BC Components |
| Series | 102 PHR-ST |
| Impedance | 27 mOhms |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 3300 µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | 1.122" (28.50mm) |
| Polarization | Polar |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Voltage - Rated | 400 V |
| Lifetime @ Temp. | 10000 Hrs @ 85°C |
| Size / Dimension | 2.559" Dia (65.00mm) |
| Height - Seated (Max) | 4.358" (110.70mm) |
| Operating Temperature | -40°C ~ 85°C |
| Ripple Current @ Low Frequency | 12.1 A @ 100 Hz |
| ESR (Equivalent Series Resistance) | 40mOhm @ 100Hz |
