Step1: Product

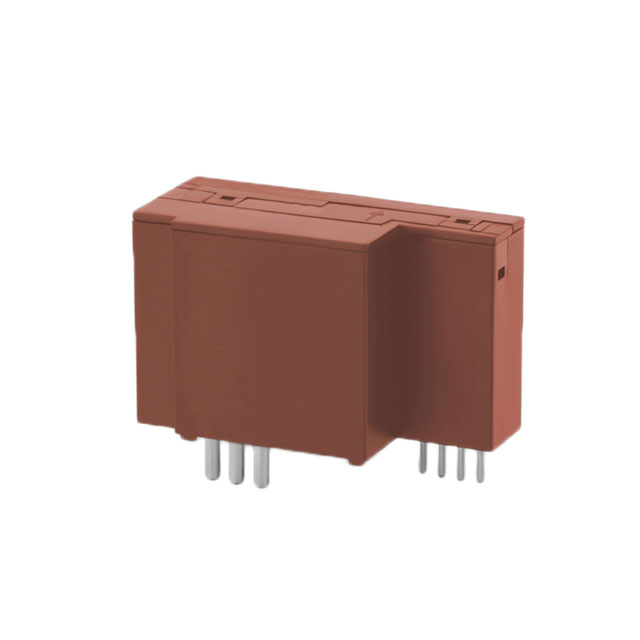

VACUUMSCHMELZE T60404N4648X400
Image shown is a representation only
Manufacturer
Manufacturer No
T60404N4648X400
Package
9-DIP Module
Packaging
Box
Description
CURRENT SENSOR CL 25A
Detailed Description
Current Sensor 25A 1 Channel Closed Loop Unidirectional 9-DIP Module
DataSheet
Mfr
VACUUMSCHMELZE
Output
Ratiometric, Current
Accuracy
±0.5%
Frequency
DC ~ 200kHz
Linearity
±0.1%
Packaging
Box
Part Status
Active
Sensor Type
Closed Loop
Polarization
Unidirectional
For Measuring
AC/DC
Mounting Type
Through Hole
Response Time
500µs
Package / Case
9-DIP Module
Voltage - Supply
±11.4V ~ 15.75V
Current - Sensing
25A
Number of Channels
1
Operating Temperature
-40°C ~ 85°C
Current - Supply (Max)
15mA
| Attribute | Value |
|---|---|
| Mfr | VACUUMSCHMELZE |
| Output | Ratiometric, Current |
| Accuracy | ±0.5% |
| Frequency | DC ~ 200kHz |
| Linearity | ±0.1% |
| Packaging | Box |
| Part Status | Active |
| Sensor Type | Closed Loop |
| Polarization | Unidirectional |
| For Measuring | AC/DC |
| Mounting Type | Through Hole |
| Response Time | 500µs |
| Package / Case | 9-DIP Module |
| Voltage - Supply | ±11.4V ~ 15.75V |
| Current - Sensing | 25A |
| Number of Channels | 1 |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply (Max) | 15mA |
