Step1: Product

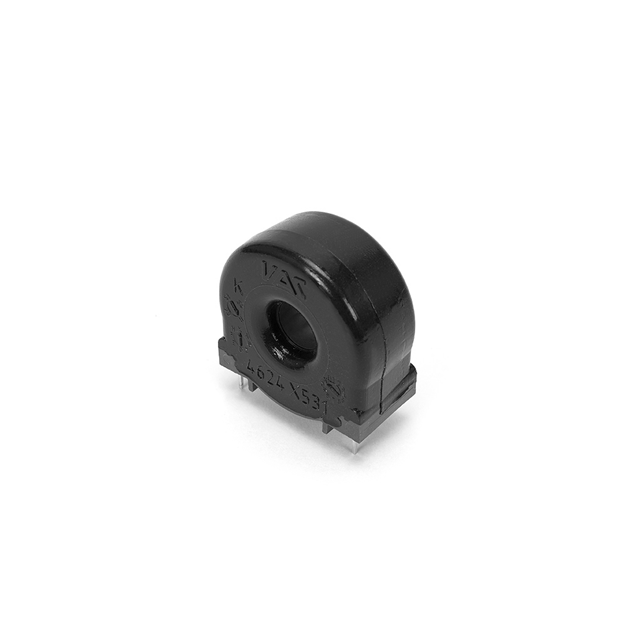

VACUUMSCHMELZE T60404E4626X501
Image shown is a representation only
Manufacturer
Manufacturer No
T60404E4626X501
Packaging
Box
Description
CURR SENSE XFMR 1:2500 100A TH
Detailed Description
100 A 1:2500 Current Sense Transformer 50Hz 44Ohm 2.1 H Through Hole
DataSheet
Type
Non-Invasive (Solid Core)
Packaging
Box
Inductance
2.1 H
Part Status
Active
Manufacturer
VACUUMSCHMELZE
Current Ratio
2500:1
Mounting Type
Through Hole
Frequency Range
50Hz
Size / Dimension
1.339" L x 0.551" W (34.00mm x 14.00mm)
Termination Style
PC Pin
DC Resistance (DCR)
44Ohm
Current Rating (Amps)
100 A
Height - Seated (Max)
1.339" (34.00mm)
Turns Ratio - Primary:Secondary
1:2500
| Attribute | Value |
|---|---|
| Type | Non-Invasive (Solid Core) |
| Packaging | Box |
| Inductance | 2.1 H |
| Part Status | Active |
| Manufacturer | VACUUMSCHMELZE |
| Current Ratio | 2500:1 |
| Mounting Type | Through Hole |
| Frequency Range | 50Hz |
| Size / Dimension | 1.339" L x 0.551" W (34.00mm x 14.00mm) |
| Termination Style | PC Pin |
| DC Resistance (DCR) | 44Ohm |
| Current Rating (Amps) | 100 A |
| Height - Seated (Max) | 1.339" (34.00mm) |
| Turns Ratio - Primary:Secondary | 1:2500 |
