Step1: Product
Unictron Technologies Corporation MT-4B-AS-BL03

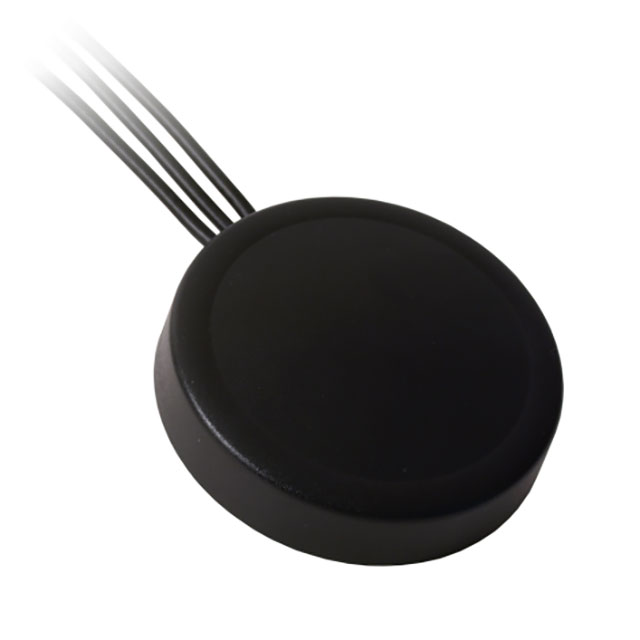

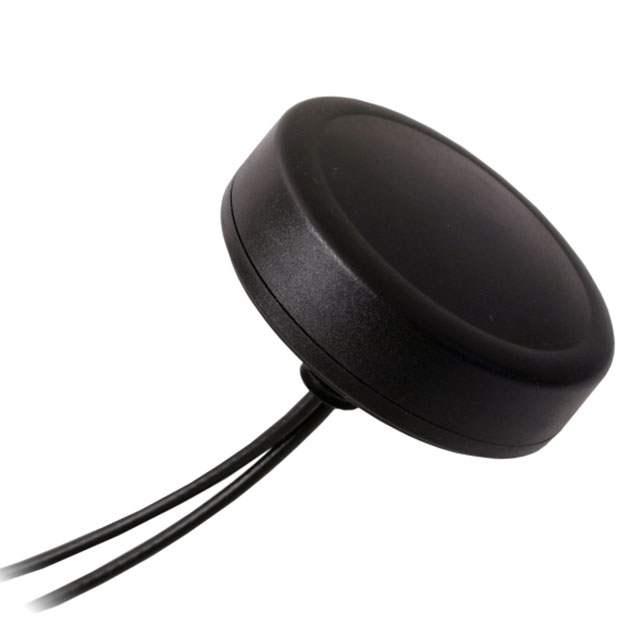

Image shown is a representation only
Manufacturer
Manufacturer No
MT-4B-AS-BL03
Packaging
Bulk
Description
3-IN-1 COMBO EXTERNAL ANTENNA
Detailed Description
RF ANTENNA DCS, Beidou, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi Module SMA Male Adhesive, Magnetic
DataSheet
Gain
3.62dBi, 4.24dBi, 1.21dBi, 1.21dBi, 1.44dBi, 4.77dBi, 4.77dBi, 4.31dBi, 6.44dBi, 7.23dBi, 7.87dBi, 7.12dBi, -0.78dBi, 6.97dBi, 4.89dBi, 4.46dBi, 3.19dBi
VSWR
2, 3
Features
Cable - 3m
Packaging
Bulk
Part Status
Active
Return Loss
-6dB, -10dB
Termination
SMA Male
Antenna Type
Module
Applications
DCS, Beidou, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi
Height (Max)
0.622" (15.80mm)
Manufacturer
Unictron Technologies Corporation
Mounting Type
Adhesive, Magnetic
Frequency Group
Wide Band
Frequency Range
698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz
Number of Bands
12
RF Family/Standard
Cellular, Navigation, WiFi
Base Product Number
MT-4B
Frequency (Center/Band)
761MHz, 892MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.495GHz, 3.55GHz, 5.8GHz
| Attribute | Value |
|---|---|
| Gain | 3.62dBi, 4.24dBi, 1.21dBi, 1.21dBi, 1.44dBi, 4.77dBi, 4.77dBi, 4.31dBi, 6.44dBi, 7.23dBi, 7.87dBi, 7.12dBi, -0.78dBi, 6.97dBi, 4.89dBi, 4.46dBi, 3.19dBi |
| VSWR | 2, 3 |
| Features | Cable - 3m |
| Packaging | Bulk |
| Part Status | Active |
| Return Loss | -6dB, -10dB |
| Termination | SMA Male |
| Antenna Type | Module |
| Applications | DCS, Beidou, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi |
| Height (Max) | 0.622" (15.80mm) |
| Manufacturer | Unictron Technologies Corporation |
| Mounting Type | Adhesive, Magnetic |
| Frequency Group | Wide Band |
| Frequency Range | 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz |
| Number of Bands | 12 |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Base Product Number | MT-4B |
| Frequency (Center/Band) | 761MHz, 892MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.495GHz, 3.55GHz, 5.8GHz |
