Step1: Product

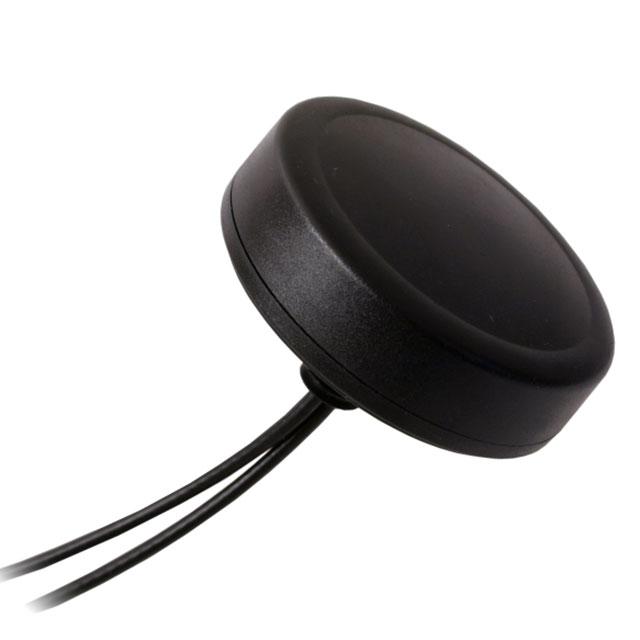

Unictron Technologies Corporation MT-4B-AC-BL03
Image shown is a representation only
Manufacturer
Manufacturer No
MT-4B-AC-BL03
Packaging
Bulk
Description
2-IN-1 COMBO EXTERNAL ANTENNA
Detailed Description
RF ANTENNA DCS, Beidou, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, UMTS Module SMA Male Screw Mount
DataSheet
Gain
0.15dBi, -2.17dBi, 1.21dBi, 1.21dBi, 1.44dBi, 2.52dBi, 2.71dBi, 2.71dBi, 7.93dBi
VSWR
2
Series
MT-4B
Features
Cable - 5m
Packaging
Bulk
Part Status
Obsolete
Return Loss
-10dB
Termination
SMA Male
Antenna Type
Module
Applications
DCS, Beidou, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, UMTS
Height (Max)
0.787" (20.00mm)
Manufacturer
Unictron Technologies Corporation
Mounting Type
Screw Mount
Frequency Group
Wide Band
Frequency Range
698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz
Number of Bands
9
RF Family/Standard
Cellular, Navigation
Base Product Number
MT-4B
Frequency (Center/Band)
761MHz, 892MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz
| Attribute | Value |
|---|---|
| Gain | 0.15dBi, -2.17dBi, 1.21dBi, 1.21dBi, 1.44dBi, 2.52dBi, 2.71dBi, 2.71dBi, 7.93dBi |
| VSWR | 2 |
| Series | MT-4B |
| Features | Cable - 5m |
| Packaging | Bulk |
| Part Status | Obsolete |
| Return Loss | -10dB |
| Termination | SMA Male |
| Antenna Type | Module |
| Applications | DCS, Beidou, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, UMTS |
| Height (Max) | 0.787" (20.00mm) |
| Manufacturer | Unictron Technologies Corporation |
| Mounting Type | Screw Mount |
| Frequency Group | Wide Band |
| Frequency Range | 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz |
| Number of Bands | 9 |
| RF Family/Standard | Cellular, Navigation |
| Base Product Number | MT-4B |
| Frequency (Center/Band) | 761MHz, 892MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz |
