Step1: Product

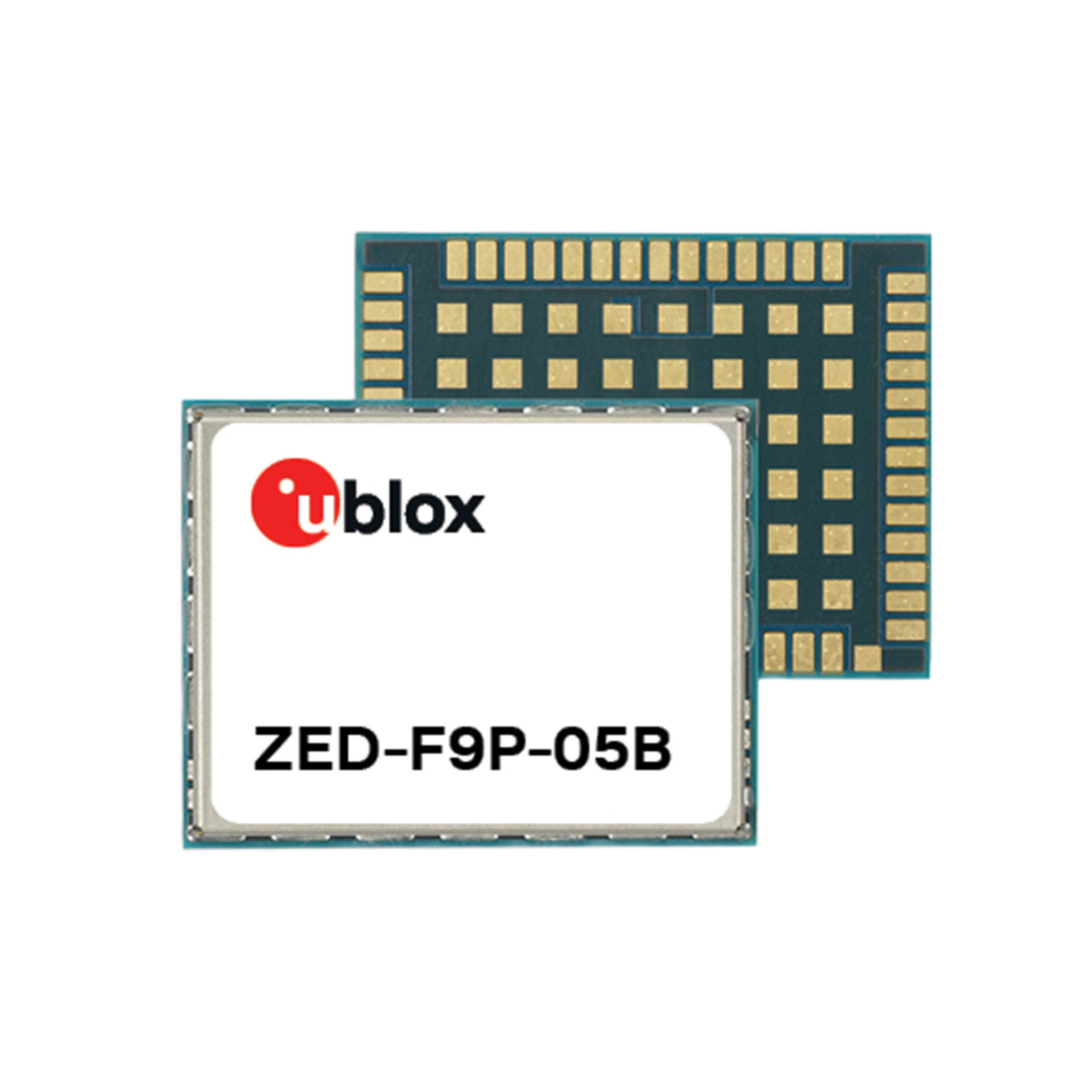

u-blox ZED-F9P-05B
Image shown is a representation only
Manufacturer
Manufacturer No
ZED-F9P-05B
Package
54-SMD Module
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
HIGH PRECISION GNSS MODULE W RTK
Detailed Description
- RF Receiver BeiDou, Galileo, GLONASS, GNSS, GPS, QZSS, SBAS -167dBm 921.6kbps Not Included 54-LGA (22x17)
DataSheet
Features
SPI digital interface, UART interface, USB Interface
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Sensitivity
-167dBm
Applications
General Purpose
Manufacturer
u-blox
Mounting Type
Surface Mount
Data Interface
I2C, SPI, UART, USB
Package / Case
54-SMD Module
Data Rate (Max)
921.6kbps
Voltage - Supply
2.7V ~ 3.6V
Antenna Connector
Not Included
Operating Temperature
-40°C ~ 85°C
Modulation or Protocol
BeiDou, Galileo, GLONASS, GNSS, GPS, QZSS, SBAS
Supplier Device Package
54-LGA (22x17)
| Attribute | Value |
|---|---|
| Features | SPI digital interface, UART interface, USB Interface |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Sensitivity | -167dBm |
| Applications | General Purpose |
| Manufacturer | u-blox |
| Mounting Type | Surface Mount |
| Data Interface | I2C, SPI, UART, USB |
| Package / Case | 54-SMD Module |
| Data Rate (Max) | 921.6kbps |
| Voltage - Supply | 2.7V ~ 3.6V |
| Antenna Connector | Not Included |
| Operating Temperature | -40°C ~ 85°C |
| Modulation or Protocol | BeiDou, Galileo, GLONASS, GNSS, GPS, QZSS, SBAS |
| Supplier Device Package | 54-LGA (22x17) |
