Step1: Product

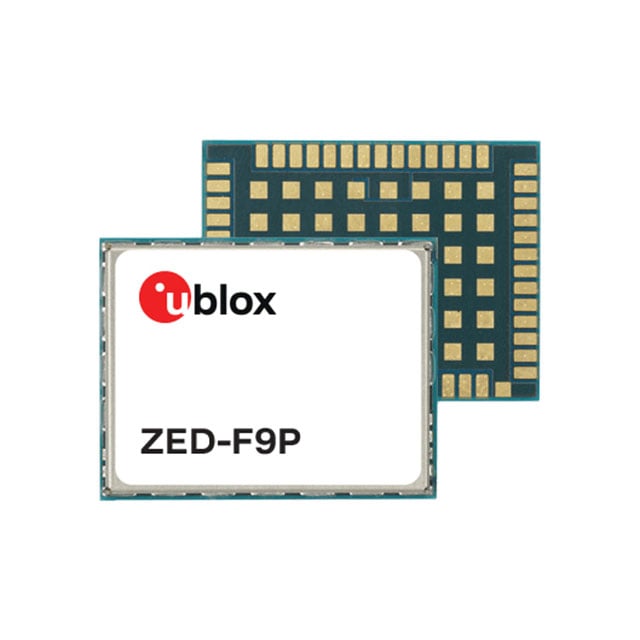

u-blox ZED-F9P-04B
Image shown is a representation only
Manufacturer
Manufacturer No
ZED-F9P-04B
Quantity
103
Availability
In Stock
Package
54-SMD Module
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
MOD RF RX PRECISION GNSS, RTK
Detailed Description
ZED-F9P RF Receiver BeiDou, Galileo, GLONASS, GNSS, GPS 1.207GHz, 1.2276GHz, 1.246GHz, 1.561GHz, 1.575GHz, 1.602GHz -167dBm 921.6kbps 54-LGA (22x17)
DataSheet
Series
ZED-F9P
Frequency
1.207GHz, 1.2276GHz, 1.246GHz, 1.561GHz, 1.575GHz, 1.602GHz
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Sensitivity
-167dBm
Applications
General Purpose
Manufacturer
u-blox
Mounting Type
Surface Mount
Data Interface
I2C, SPI, UART, USB
Package / Case
54-SMD Module
Data Rate (Max)
921.6kbps
Voltage - Supply
2.7V ~ 3.6V
Current - Receiving
130mA
Operating Temperature
-40°C ~ 85°C
Modulation or Protocol
BeiDou, Galileo, GLONASS, GNSS, GPS
Supplier Device Package
54-LGA (22x17)
| Attribute | Value |
|---|---|
| Series | ZED-F9P |
| Frequency | 1.207GHz, 1.2276GHz, 1.246GHz, 1.561GHz, 1.575GHz, 1.602GHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Sensitivity | -167dBm |
| Applications | General Purpose |
| Manufacturer | u-blox |
| Mounting Type | Surface Mount |
| Data Interface | I2C, SPI, UART, USB |
| Package / Case | 54-SMD Module |
| Data Rate (Max) | 921.6kbps |
| Voltage - Supply | 2.7V ~ 3.6V |
| Current - Receiving | 130mA |
| Operating Temperature | -40°C ~ 85°C |
| Modulation or Protocol | BeiDou, Galileo, GLONASS, GNSS, GPS |
| Supplier Device Package | 54-LGA (22x17) |
