Step1: Product

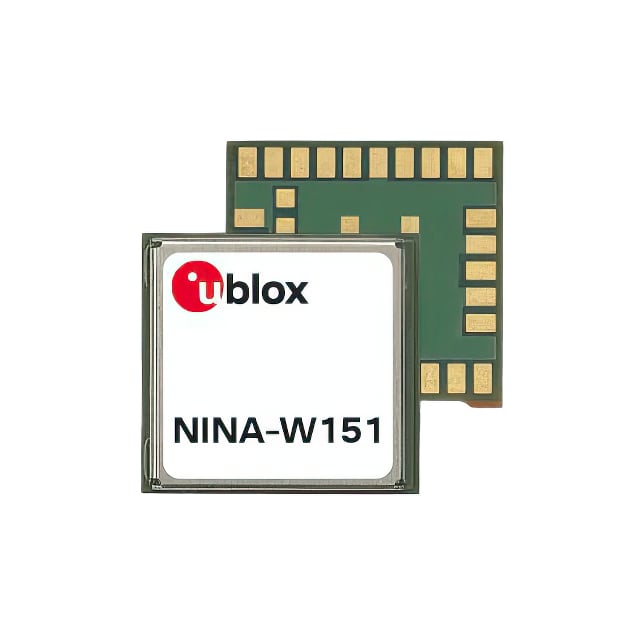

u-blox NINA-W151-04B
Image shown is a representation only
Manufacturer
Manufacturer No
NINA-W151-04B
Quantity
20
Availability
In Stock
Package
36-SMD Module
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
RF TXRX MOD BT ISM>1GHZ WIFISMD
Detailed Description
Bluetooth, General ISM > 1GHz, WiFi 802.11b/g/n, Bluetooth v4.2 Transceiver Module 2.4GHz ~ 2.48GHz Antenna Not Included Surface Mount
DataSheet
Mfr
u-blox
Series
NINA-W15
Protocol
802.11b/g/n, Bluetooth v4.2
Data Rate
54Mbps
Frequency
2.4GHz ~ 2.48GHz
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Modulation
CCK, DSSS, OFDM
Memory Size
2MB Flash, 0.5MB SRAM
Part Status
Last Time Buy
Sensitivity
-96dBm
Antenna Type
Antenna Not Included
Mounting Type
Surface Mount
Package / Case
36-SMD Module
Power - Output
18dBm
Voltage - Supply
3V ~ 3.6V
Serial Interfaces
SDIO, SPI, UART
RF Family/Standard
Bluetooth, General ISM > 1GHz, WiFi
Utilized IC / Part
ESP32
Base Product Number
NINA-W151
Current - Receiving
110mA ~ 125mA
Operating Temperature
-40°C ~ 85°C
Current - Transmitting
120mA ~ 170mA
| Attribute | Value |
|---|---|
| Mfr | u-blox |
| Series | NINA-W15 |
| Protocol | 802.11b/g/n, Bluetooth v4.2 |
| Data Rate | 54Mbps |
| Frequency | 2.4GHz ~ 2.48GHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Modulation | CCK, DSSS, OFDM |
| Memory Size | 2MB Flash, 0.5MB SRAM |
| Part Status | Last Time Buy |
| Sensitivity | -96dBm |
| Antenna Type | Antenna Not Included |
| Mounting Type | Surface Mount |
| Package / Case | 36-SMD Module |
| Power - Output | 18dBm |
| Voltage - Supply | 3V ~ 3.6V |
| Serial Interfaces | SDIO, SPI, UART |
| RF Family/Standard | Bluetooth, General ISM > 1GHz, WiFi |
| Utilized IC / Part | ESP32 |
| Base Product Number | NINA-W151 |
| Current - Receiving | 110mA ~ 125mA |
| Operating Temperature | -40°C ~ 85°C |
| Current - Transmitting | 120mA ~ 170mA |
