u-blox NINA-W101-01B

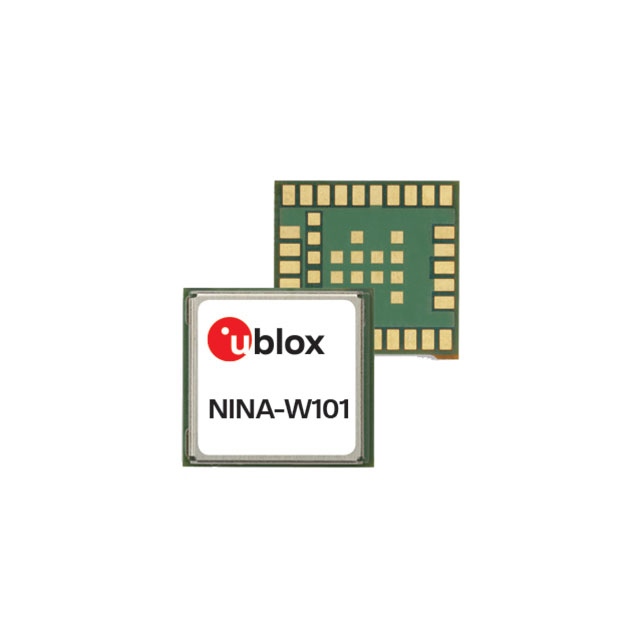

u-blox NINA-W101-01B electronic component

Image shown is a representation only

Manufacturer
u-blox
Manufacturer No
NINA-W101-01B
Quantity
7
Availability
In Stock
Package
36-SMD Module
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
RF TXRX MOD BLUETOOTH WIFISMD
Detailed Description
Bluetooth, WiFi 802.11b/g/n, Bluetooth v4.2 Transceiver Module 2.4GHz Antenna Not Included Surface Mount
Datasheet
ISO 13485 certification
ISO 14001 certification
Five-Star Service certification
UKAS management certification
IAF recognition arrangement certification
Mfr
u-blox
Series
NINA-W10
Protocol
802.11b/g/n, Bluetooth v4.2
Data Rate
72Mbps
Frequency
2.4GHz
Packaging
Tape & Reel (TR); Cut Tape (CT)
Modulation
CCK, DSSS, GFSK, QDPSK, QPSK, OFDM
Memory Size
16Mb Flash, 448kB ROM, 520kB SRAM
Sensitivity
-96dBm
Antenna Type
Antenna Not Included
Mounting Type
Surface Mount
Package / Case
36-SMD Module
Power - Output
5dBm
Voltage - Supply
3V ~ 3.6V
Serial Interfaces
ADC, GPIO, I2C, SPI, UART
RF Family/Standard
Bluetooth, WiFi
Utilized IC / Part
ESP32-D0WDQ6-V3
Base Product Number
NINA-W101
Current - Receiving
95mA
DigiKey Programmable
Not Verified
Operating Temperature
-40°C ~ 85°C
Current - Transmitting
130mA
AttributeValue
Mfru-blox
SeriesNINA-W10
Protocol802.11b/g/n, Bluetooth v4.2
Data Rate72Mbps
Frequency2.4GHz
PackagingTape & Reel (TR); Cut Tape (CT)
ModulationCCK, DSSS, GFSK, QDPSK, QPSK, OFDM
Memory Size16Mb Flash, 448kB ROM, 520kB SRAM
Sensitivity-96dBm
Antenna TypeAntenna Not Included
Mounting TypeSurface Mount
Package / Case36-SMD Module
Power - Output5dBm
Voltage - Supply3V ~ 3.6V
Serial InterfacesADC, GPIO, I2C, SPI, UART
RF Family/StandardBluetooth, WiFi
Utilized IC / PartESP32-D0WDQ6-V3
Base Product NumberNINA-W101
Current - Receiving95mA
DigiKey ProgrammableNot Verified
Operating Temperature-40°C ~ 85°C
Current - Transmitting130mA
