Step1: Product
TT Electronics/Optek Technology OVTL09LG3G

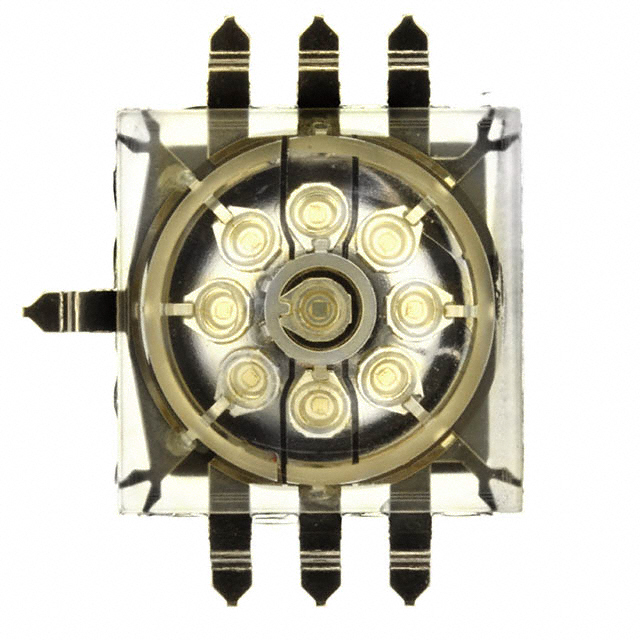

Image shown is a representation only
Manufacturer
Manufacturer No
OVTL09LG3G
Package
8-SMD (7 Leads), Gull Wing
Packaging
Tray
Description
LED GREEN 515NM SMD
Detailed Description
LED Lighting Color - Green 515nm (510nm ~ 520nm) 8-SMD (7 Leads), Gull Wing
DataSheet
Mfr
TT Electronics/Optek Technology
Color
Green
Packaging
Tray
Wavelength
515nm (510nm ~ 520nm)
Part Status
Obsolete
Current - Max
1.05A
Mounting Type
Surface Mount
Viewing Angle
120°
Current - Test
1.05A
Package / Case
8-SMD (7 Leads), Gull Wing
Size / Dimension
1.148" L x 1.148" W (29.15mm x 29.15mm)
Temperature - Test
25°C
Height - Seated (Max)
0.341" (8.65mm)
Supplier Device Package
SMD
Lumens/Watt @ Current - Test
46 lm/W
Voltage - Forward (Vf) (Typ)
10.8V
Thermal Resistance of Package
2.5°C/W
Luminous Flux @ Current/Temperature
522lm (Typ)
| Attribute | Value |
|---|---|
| Mfr | TT Electronics/Optek Technology |
| Color | Green |
| Packaging | Tray |
| Wavelength | 515nm (510nm ~ 520nm) |
| Part Status | Obsolete |
| Current - Max | 1.05A |
| Mounting Type | Surface Mount |
| Viewing Angle | 120° |
| Current - Test | 1.05A |
| Package / Case | 8-SMD (7 Leads), Gull Wing |
| Size / Dimension | 1.148" L x 1.148" W (29.15mm x 29.15mm) |
| Temperature - Test | 25°C |
| Height - Seated (Max) | 0.341" (8.65mm) |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 46 lm/W |
| Voltage - Forward (Vf) (Typ) | 10.8V |
| Thermal Resistance of Package | 2.5°C/W |
| Luminous Flux @ Current/Temperature | 522lm (Typ) |
