Step1: Product
TT Electronics/Optek Technology OVS5MABCR4A

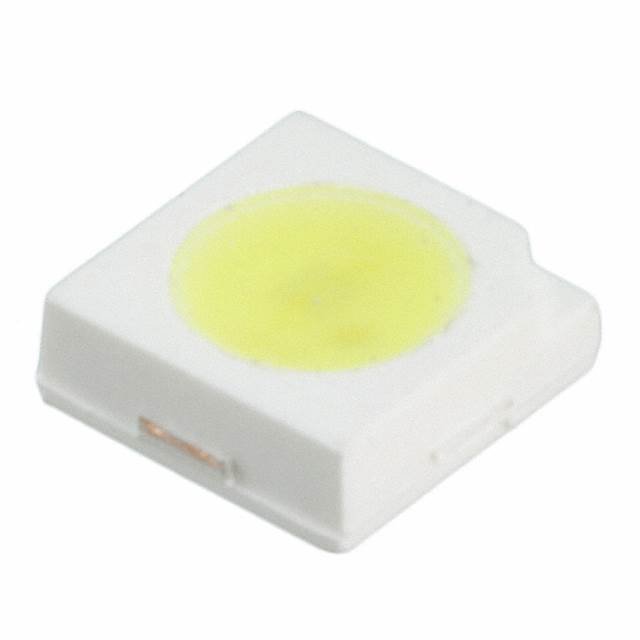

Image shown is a representation only
Manufacturer
Manufacturer No
OVS5MABCR4A
Package
6-SMD, No Lead
Packaging
Bulk
Description
LED OVS5MXBCR4X AMBER 624NM SMD
Detailed Description
LED Lighting Color OVS5MxBCR4x Amber 624nm 6-SMD, No Lead
DataSheet
Mfr
TT Electronics/Optek Technology
Color
Amber
Series
OVS5MxBCR4x
Packaging
Bulk
Wavelength
624nm
Part Status
Active
Current - Max
200mA
Mounting Type
Surface Mount
Viewing Angle
115°
Current - Test
140mA
Package / Case
6-SMD, No Lead
Size / Dimension
0.126" L x 0.118" W (3.20mm x 3.00mm)
Temperature - Test
25°C
Height - Seated (Max)
0.075" (1.90mm)
Supplier Device Package
SMD
Lumens/Watt @ Current - Test
66 lm/W
Voltage - Forward (Vf) (Typ)
2.3V
Thermal Resistance of Package
60°C/W
Luminous Flux @ Current/Temperature
24lm (Typ)
| Attribute | Value |
|---|---|
| Mfr | TT Electronics/Optek Technology |
| Color | Amber |
| Series | OVS5MxBCR4x |
| Packaging | Bulk |
| Wavelength | 624nm |
| Part Status | Active |
| Current - Max | 200mA |
| Mounting Type | Surface Mount |
| Viewing Angle | 115° |
| Current - Test | 140mA |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.118" W (3.20mm x 3.00mm) |
| Temperature - Test | 25°C |
| Height - Seated (Max) | 0.075" (1.90mm) |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 66 lm/W |
| Voltage - Forward (Vf) (Typ) | 2.3V |
| Thermal Resistance of Package | 60°C/W |
| Luminous Flux @ Current/Temperature | 24lm (Typ) |
