Step1: Product
TT Electronics/BI Magnetics HM79-108R2LFTR13

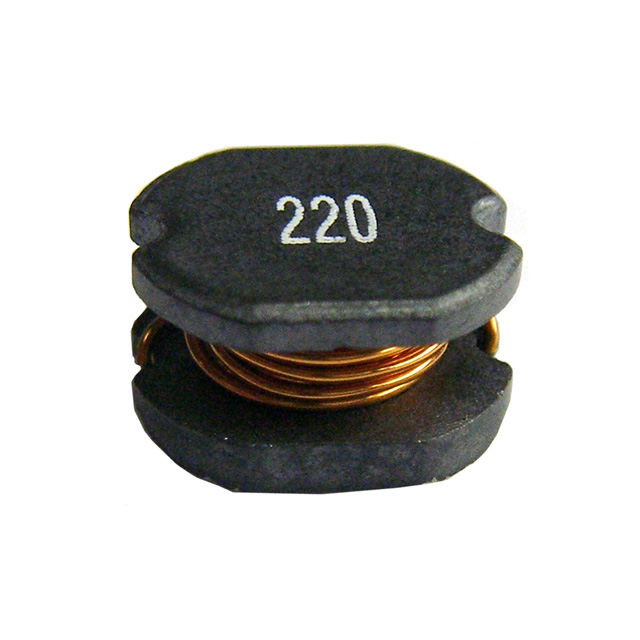

Image shown is a representation only
Manufacturer
Manufacturer No
HM79-108R2LFTR13
Package
Nonstandard
Packaging
Cut Tape (CT)
Description
FIXED IND 8.2UH 840MA 146 MOHM
Detailed Description
8.2 µH Unshielded Wirewound Inductor 840 mA 146mOhm Max Nonstandard
Mfr
TT Electronics/BI Magnetics
Type
Wirewound
Series
HM79
Packaging
Cut Tape (CT)
Shielding
Unshielded
Tolerance
±20%
Inductance
8.2 µH
Part Status
Discontinued at DigiKey
Mounting Type
Surface Mount
Package / Case
Nonstandard
Size / Dimension
0.177" L x 0.157" W (4.50mm x 4.00mm)
Base Product Number
HM79
DC Resistance (DCR)
146mOhm Max
Current Rating (Amps)
840 mA
Height - Seated (Max)
0.126" (3.20mm)
Operating Temperature
-40°C ~ 125°C
Inductance Frequency - Test
100 kHz
| Attribute | Value |
|---|---|
| Mfr | TT Electronics/BI Magnetics |
| Type | Wirewound |
| Series | HM79 |
| Packaging | Cut Tape (CT) |
| Shielding | Unshielded |
| Tolerance | ±20% |
| Inductance | 8.2 µH |
| Part Status | Discontinued at DigiKey |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.177" L x 0.157" W (4.50mm x 4.00mm) |
| Base Product Number | HM79 |
| DC Resistance (DCR) | 146mOhm Max |
| Current Rating (Amps) | 840 mA |
| Height - Seated (Max) | 0.126" (3.20mm) |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
