Step1: Product

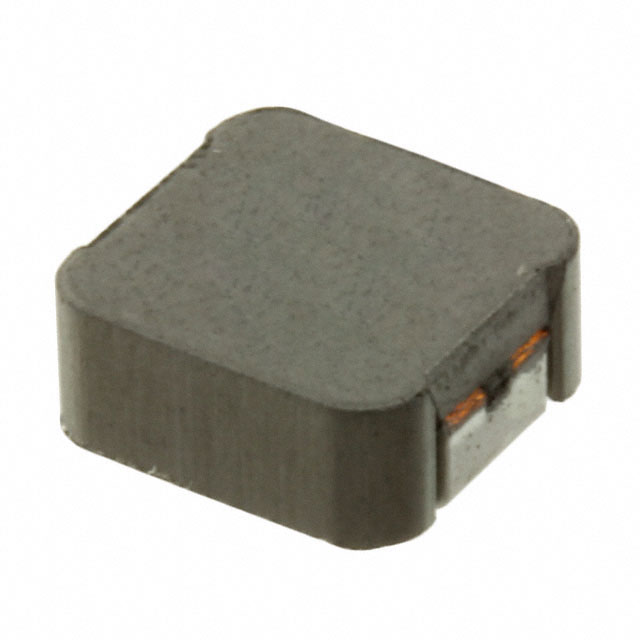

TT Electronics/BI Magnetics HA72E-061R0LFTR13
Image shown is a representation only
Manufacturer
Manufacturer No
HA72E-061R0LFTR13
Package
2-SMD
Packaging
Cut Tape (CT)
Description
FIXED IND 1UH 10.3A 10 MOHM SMD
Detailed Description
1 µH Unshielded Molded Inductor 10.3 A 10mOhm Max 2-SMD
DataSheet
Mfr
TT Electronics/BI Magnetics
Type
Molded
Series
HA72E-06
Ratings
AEC-Q200
Packaging
Cut Tape (CT)
Shielding
Unshielded
Tolerance
±20%
Inductance
1 µH
Part Status
Discontinued at DigiKey
Mounting Type
Surface Mount
Package / Case
2-SMD
Size / Dimension
0.285" L x 0.268" W (7.23mm x 6.80mm)
Base Product Number
HA72E
DC Resistance (DCR)
10mOhm Max
Current Rating (Amps)
10.3 A
Height - Seated (Max)
0.118" (3.00mm)
Operating Temperature
-40°C ~ 155°C
Current - Saturation (Isat)
15A
Inductance Frequency - Test
100 kHz
| Attribute | Value |
|---|---|
| Mfr | TT Electronics/BI Magnetics |
| Type | Molded |
| Series | HA72E-06 |
| Ratings | AEC-Q200 |
| Packaging | Cut Tape (CT) |
| Shielding | Unshielded |
| Tolerance | ±20% |
| Inductance | 1 µH |
| Part Status | Discontinued at DigiKey |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD |
| Size / Dimension | 0.285" L x 0.268" W (7.23mm x 6.80mm) |
| Base Product Number | HA72E |
| DC Resistance (DCR) | 10mOhm Max |
| Current Rating (Amps) | 10.3 A |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Operating Temperature | -40°C ~ 155°C |
| Current - Saturation (Isat) | 15A |
| Inductance Frequency - Test | 100 kHz |
