Triad Magnetics AX104R-220

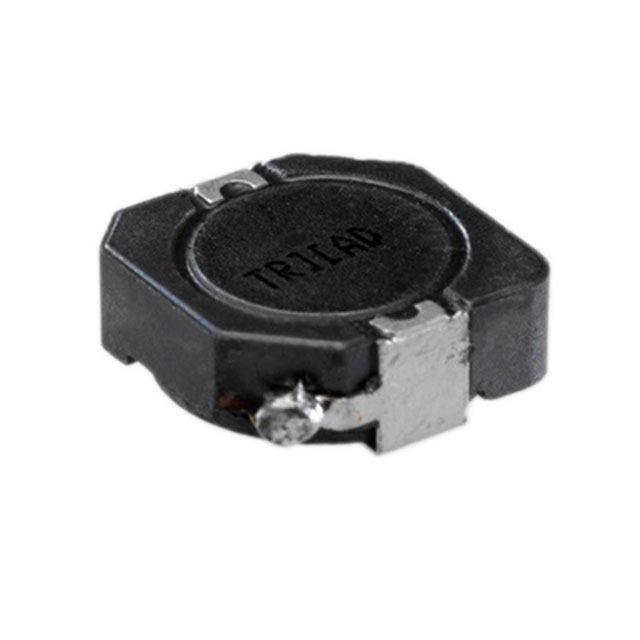

Image shown is a representation only
Manufacturer
Manufacturer No
AX104R-220
Package
Nonstandard
Packaging
Box
Description
FIXED IND 22UH 2.9A 73 MOHM SMD
Detailed Description
22 µH Shielded Drum Core, Wirewound Inductor 2.9 A 73mOhm Max Nonstandard
DataSheet
Mfr
Triad Magnetics
Type
Drum Core, Wirewound
Series
AX104R
Packaging
Box
Shielding
Shielded
Tolerance
±30%
Inductance
22 µH
Part Status
Active
Mounting Type
Surface Mount
Package / Case
Nonstandard
Material - Core
Ferrite
Size / Dimension
0.409" L x 0.406" W (10.40mm x 10.30mm)
DC Resistance (DCR)
73mOhm Max
Current Rating (Amps)
2.9 A
Height - Seated (Max)
0.157" (4.00mm)
Operating Temperature
-40°C ~ 85°C
Supplier Device Package
SMD
Inductance Frequency - Test
100 kHz
| Attribute | Value |
|---|---|
| Mfr | Triad Magnetics |
| Type | Drum Core, Wirewound |
| Series | AX104R |
| Packaging | Box |
| Shielding | Shielded |
| Tolerance | ±30% |
| Inductance | 22 µH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Material - Core | Ferrite |
| Size / Dimension | 0.409" L x 0.406" W (10.40mm x 10.30mm) |
| DC Resistance (DCR) | 73mOhm Max |
| Current Rating (Amps) | 2.9 A |
| Height - Seated (Max) | 0.157" (4.00mm) |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | SMD |
| Inductance Frequency - Test | 100 kHz |
