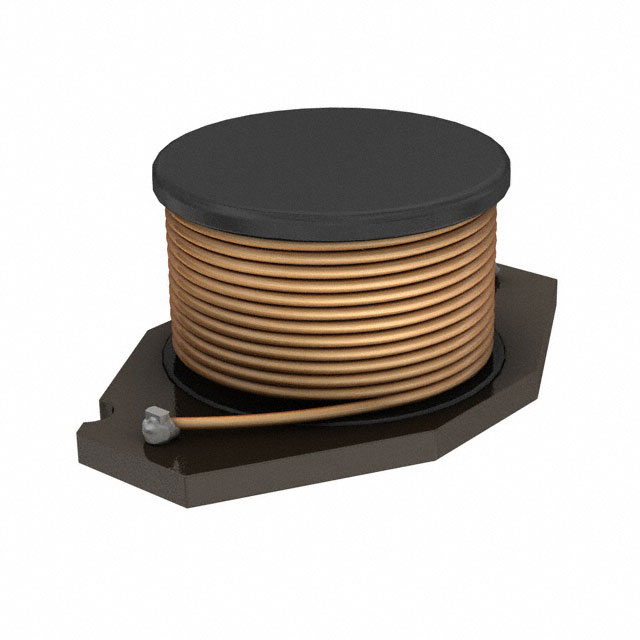

Triad Magnetics AX97-30820
Image shown is a representation only
Manufacturer
Manufacturer No
AX97-30820
Package
Nonstandard
Packaging
Bulk
Description
FIXED IND 82UH 1.58A 240 MOHM
Detailed Description
82 µH Unshielded Drum Core, Wirewound Inductor 1.58 A 240mOhm Max Nonstandard
DataSheet
Mfr
Triad Magnetics
Type
Drum Core, Wirewound
Series
AX97
Packaging
Bulk
Shielding
Unshielded
Tolerance
±20%
Inductance
82 µH
Part Status
Active
Mounting Type
Surface Mount
Package / Case
Nonstandard
Material - Core
Ferrite
Size / Dimension
0.530" L x 0.370" W (13.46mm x 9.40mm)
DC Resistance (DCR)
240mOhm Max
Current Rating (Amps)
1.58 A
Height - Seated (Max)
0.232" (5.90mm)
Operating Temperature
-40°C ~ 85°C
Supplier Device Package
SMD
Inductance Frequency - Test
100 kHz
| Attribute | Value |
|---|---|
| Mfr | Triad Magnetics |
| Type | Drum Core, Wirewound |
| Series | AX97 |
| Packaging | Bulk |
| Shielding | Unshielded |
| Tolerance | ±20% |
| Inductance | 82 µH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Material - Core | Ferrite |
| Size / Dimension | 0.530" L x 0.370" W (13.46mm x 9.40mm) |
| DC Resistance (DCR) | 240mOhm Max |
| Current Rating (Amps) | 1.58 A |
| Height - Seated (Max) | 0.232" (5.90mm) |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | SMD |
| Inductance Frequency - Test | 100 kHz |
