Toshiba Semiconductor and Storage TW054V65C,LQ

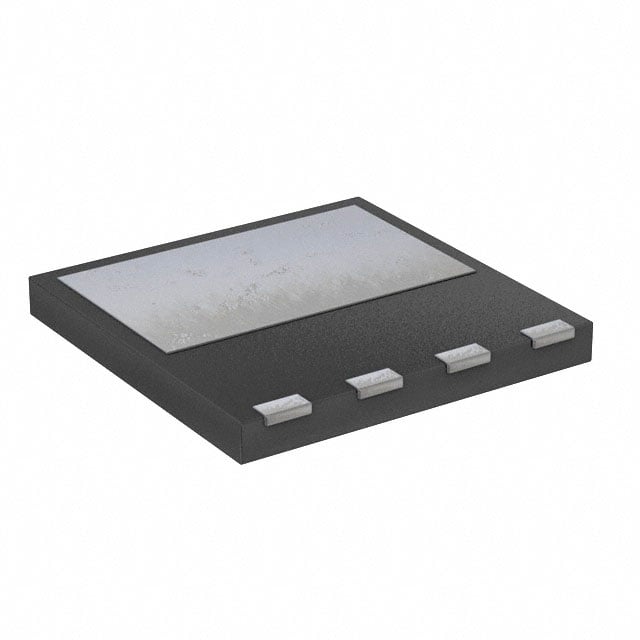

Toshiba Semiconductor and Storage TW054V65C,LQ electronic component

Image shown is a representation only

Manufacturer No
TW054V65C,LQ
Package
4-VSFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
N-CH SIC MOSFET, 650 V, 0.054 OH
Detailed Description
N-Channel 650 V 36A (Tc) 132W (Tc) Surface Mount 4-DFN-EP (8x8)
Datasheet
ISO 13485 certification
ISO 14001 certification
Five-Star Service certification
UKAS management certification
IAF recognition arrangement certification
Mfr
Toshiba Semiconductor and Storage
FET Type
N-Channel
Packaging
Tape & Reel (TR); Cut Tape (CT)
Vgs (Max)
+25V, -10V
Technology
SiCFET (Silicon Carbide)
Mounting Type
Surface Mount
Package / Case
4-VSFN Exposed Pad
Vgs(th) (Max) @ Id
5V @ 1.6mA
Operating Temperature
175°C
Rds On (Max) @ Id, Vgs
81mOhm @ 20A, 18V
Power Dissipation (Max)
132W (Tc)
Supplier Device Package
4-DFN-EP (8x8)
Gate Charge (Qg) (Max) @ Vgs
41 nC @ 18 V
Drain to Source Voltage (Vdss)
650 V
Input Capacitance (Ciss) (Max) @ Vds
1362 pF @ 400 V
Drive Voltage (Max Rds On, Min Rds On)
18V
Current - Continuous Drain (Id) @ 25°C
36A (Tc)
AttributeValue
MfrToshiba Semiconductor and Storage
FET TypeN-Channel
PackagingTape & Reel (TR); Cut Tape (CT)
Vgs (Max)+25V, -10V
TechnologySiCFET (Silicon Carbide)
Mounting TypeSurface Mount
Package / Case4-VSFN Exposed Pad
Vgs(th) (Max) @ Id5V @ 1.6mA
Operating Temperature175°C
Rds On (Max) @ Id, Vgs81mOhm @ 20A, 18V
Power Dissipation (Max)132W (Tc)
Supplier Device Package4-DFN-EP (8x8)
Gate Charge (Qg) (Max) @ Vgs41 nC @ 18 V
Drain to Source Voltage (Vdss)650 V
Input Capacitance (Ciss) (Max) @ Vds1362 pF @ 400 V
Drive Voltage (Max Rds On, Min Rds On)18V
Current - Continuous Drain (Id) @ 25°C36A (Tc)
