Toshiba Semiconductor and Storage TRS30N120HB,S1Q

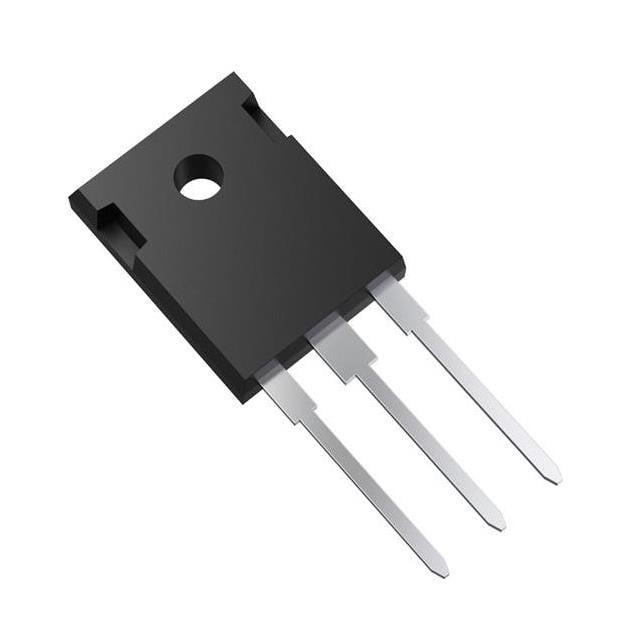

Image shown is a representation only
Manufacturer
Manufacturer No
TRS30N120HB,S1Q
Package
TO-247-3
Packaging
Tube
Description
1200V30A SIC SCHOTTKY BARR DIODE
Detailed Description
Diode Array 1 Pair Common Cathode 1200 V 41A Through Hole TO-247-3
DataSheet
Speed
No Recovery Time > 500mA (Io)
Packaging
Tube
Technology
SiC (Silicon Carbide) Schottky
Part Status
Active
Manufacturer
Toshiba Semiconductor and Storage
Mounting Type
Through Hole
Package / Case
TO-247-3
Diode Configuration
1 Pair Common Cathode
Supplier Device Package
TO-247
Reverse Recovery Time (trr)
0 ns
Current - Reverse Leakage @ Vr
100 µA @ 1200 V
Voltage - DC Reverse (Vr) (Max)
1200 V
Operating Temperature - Junction
175°C
Voltage - Forward (Vf) (Max) @ If
1.45 V @ 15 A
Current - Average Rectified (Io) (per Diode)
41A
| Attribute | Value |
|---|---|
| Speed | No Recovery Time > 500mA (Io) |
| Packaging | Tube |
| Technology | SiC (Silicon Carbide) Schottky |
| Part Status | Active |
| Manufacturer | Toshiba Semiconductor and Storage |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Diode Configuration | 1 Pair Common Cathode |
| Supplier Device Package | TO-247 |
| Reverse Recovery Time (trr) | 0 ns |
| Current - Reverse Leakage @ Vr | 100 µA @ 1200 V |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Operating Temperature - Junction | 175°C |
| Voltage - Forward (Vf) (Max) @ If | 1.45 V @ 15 A |
| Current - Average Rectified (Io) (per Diode) | 41A |
