Toshiba Semiconductor and Storage TLP705A(F)
.jpg?w=220&h=220&fit=contain)

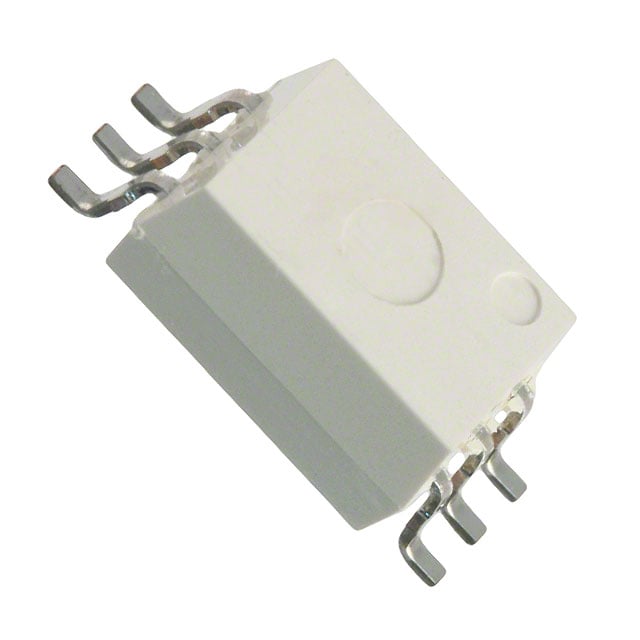

Image shown is a representation only
Manufacturer
Manufacturer No
TLP705A(F)
Package
6-SOIC (0.268", 6.80mm Width)
Packaging
Tube
Description
OPTOISO 5KV 1CH GATE DVR 6SDIP
Detailed Description
600mA Gate Driver Optical Coupling 5000Vrms 1 Channel 6-SDIP
DataSheet
Mfr
Toshiba Semiconductor and Storage
Packaging
Tube
Technology
Optical Coupling
Part Status
Obsolete
Mounting Type
Surface Mount
Package / Case
6-SOIC (0.268", 6.80mm Width)
Approval Agency
cUL, UL
Number of Channels
1
Base Product Number
TLP705
Voltage - Isolation
5000Vrms
Current - Peak Output
600mA
Operating Temperature
-40°C ~ 100°C
Rise / Fall Time (Typ)
35ns, 15ns
Supplier Device Package
6-SDIP
Voltage - Output Supply
10V ~ 30V
Current - Output High, Low
400mA, 400mA
Pulse Width Distortion (Max)
50ns
Voltage - Forward (Vf) (Typ)
1.57V
Current - DC Forward (If) (Max)
25 mA
Propagation Delay tpLH / tpHL (Max)
170ns, 170ns
Common Mode Transient Immunity (Min)
20kV/µs
| Attribute | Value |
|---|---|
| Mfr | Toshiba Semiconductor and Storage |
| Packaging | Tube |
| Technology | Optical Coupling |
| Part Status | Obsolete |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.268", 6.80mm Width) |
| Approval Agency | cUL, UL |
| Number of Channels | 1 |
| Base Product Number | TLP705 |
| Voltage - Isolation | 5000Vrms |
| Current - Peak Output | 600mA |
| Operating Temperature | -40°C ~ 100°C |
| Rise / Fall Time (Typ) | 35ns, 15ns |
| Supplier Device Package | 6-SDIP |
| Voltage - Output Supply | 10V ~ 30V |
| Current - Output High, Low | 400mA, 400mA |
| Pulse Width Distortion (Max) | 50ns |
| Voltage - Forward (Vf) (Typ) | 1.57V |
| Current - DC Forward (If) (Max) | 25 mA |
| Propagation Delay tpLH / tpHL (Max) | 170ns, 170ns |
| Common Mode Transient Immunity (Min) | 20kV/µs |
