Step1: Product
Toshiba Semiconductor and Storage TLP5701(D4-TP4,E

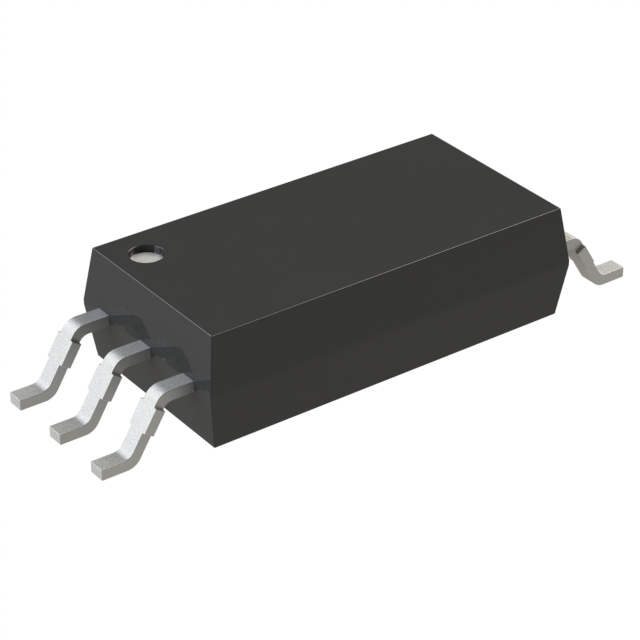

Image shown is a representation only
Manufacturer
Manufacturer No
TLP5701(D4-TP4,E
Quantity
3313
Availability
In Stock
Package
6-SOIC (0.295", 7.50mm Width)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
OPTOISO 5KV 1CH GATE DVR 6SO
Detailed Description
600mA Gate Driver Optical Coupling 5000Vrms 1 Channel 6-SO
DataSheet
Mfr
Toshiba Semiconductor and Storage
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Technology
Optical Coupling
Part Status
Active
Mounting Type
Surface Mount
Package / Case
6-SOIC (0.295", 7.50mm Width)
Approval Agency
CQC, CSA, cUL, UL, VDE
Number of Channels
1
Base Product Number
TLP5701
Voltage - Isolation
5000Vrms
Current - Peak Output
600mA
Operating Temperature
-40°C ~ 110°C
Rise / Fall Time (Typ)
50ns, 50ns
Supplier Device Package
6-SO
Voltage - Output Supply
10V ~ 30V
Current - Output High, Low
400mA, 400mA
Pulse Width Distortion (Max)
350ns
Voltage - Forward (Vf) (Typ)
1.57V
Current - DC Forward (If) (Max)
25 mA
Propagation Delay tpLH / tpHL (Max)
500ns, 500ns
Common Mode Transient Immunity (Min)
20kV/µs
| Attribute | Value |
|---|---|
| Mfr | Toshiba Semiconductor and Storage |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Technology | Optical Coupling |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.295", 7.50mm Width) |
| Approval Agency | CQC, CSA, cUL, UL, VDE |
| Number of Channels | 1 |
| Base Product Number | TLP5701 |
| Voltage - Isolation | 5000Vrms |
| Current - Peak Output | 600mA |
| Operating Temperature | -40°C ~ 110°C |
| Rise / Fall Time (Typ) | 50ns, 50ns |
| Supplier Device Package | 6-SO |
| Voltage - Output Supply | 10V ~ 30V |
| Current - Output High, Low | 400mA, 400mA |
| Pulse Width Distortion (Max) | 350ns |
| Voltage - Forward (Vf) (Typ) | 1.57V |
| Current - DC Forward (If) (Max) | 25 mA |
| Propagation Delay tpLH / tpHL (Max) | 500ns, 500ns |
| Common Mode Transient Immunity (Min) | 20kV/µs |
