Step1: Product

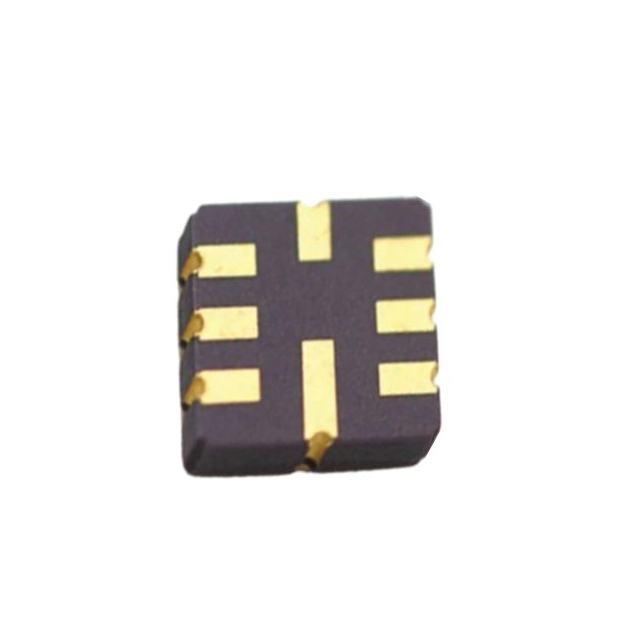

TGS SA315M0000S001
Image shown is a representation only
Manufacturer
Manufacturer No
SA315M0000S001
Package
8-SMD, No Lead
Packaging
Tape & Reel (TR)
Description
315MHZ SAW RESONATOR 8 PADS
Detailed Description
315 MHz SAW Resonator 50 Ohms -40°C ~ 85°C Surface Mount
DataSheet
Type
SAW
Height
0.053" (1.35mm)
Series
SR S3
Frequency
315 MHz
Impedance
50 Ohms
Packaging
Tape & Reel (TR)
Part Status
Active
Manufacturer
TGS
Mounting Type
Surface Mount
Package / Case
8-SMD, No Lead
Size / Dimension
0.197" L x 0.197" W (5.00mm x 5.00mm)
Frequency Tolerance
±75kHz
Operating Temperature
-40°C ~ 85°C
| Attribute | Value |
|---|---|
| Type | SAW |
| Height | 0.053" (1.35mm) |
| Series | SR S3 |
| Frequency | 315 MHz |
| Impedance | 50 Ohms |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Manufacturer | TGS |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, No Lead |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Frequency Tolerance | ±75kHz |
| Operating Temperature | -40°C ~ 85°C |
