Step1: Product

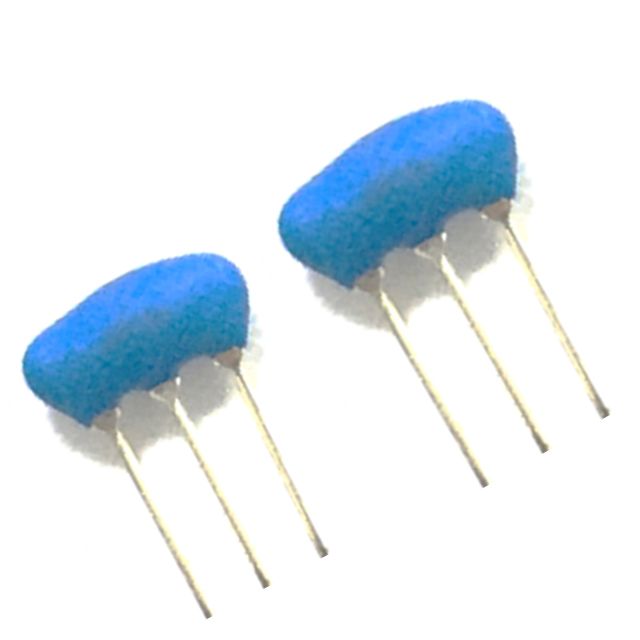

TGS CD2M000000S001
Image shown is a representation only
Manufacturer
Manufacturer No
CD2M000000S001
Package
Radial - 3 Lead, 2.50mm Pitch
Packaging
Tape & Reel (TR)
Description
CERAMIC RESONATOR 2.0MHZ,
Detailed Description
2 MHz Ceramic Resonator Built in Capacitor 30 pF ±0.3% 80 Ohms -40°C ~ 85°C Through Hole
DataSheet
Type
Ceramic
Height
0.217" (5.50mm)
Series
CD
Features
Built in Capacitor
Frequency
2 MHz
Impedance
80 Ohms
Packaging
Tape & Reel (TR)
Capacitance
30 pF
Part Status
Active
Manufacturer
TGS
Mounting Type
Through Hole
Package / Case
Radial - 3 Lead, 2.50mm Pitch
Size / Dimension
0.374" L x 0.157" W (9.50mm x 4.00mm)
Frequency Stability
±0.3%
Frequency Tolerance
±0.5%
Operating Temperature
-40°C ~ 85°C
| Attribute | Value |
|---|---|
| Type | Ceramic |
| Height | 0.217" (5.50mm) |
| Series | CD |
| Features | Built in Capacitor |
| Frequency | 2 MHz |
| Impedance | 80 Ohms |
| Packaging | Tape & Reel (TR) |
| Capacitance | 30 pF |
| Part Status | Active |
| Manufacturer | TGS |
| Mounting Type | Through Hole |
| Package / Case | Radial - 3 Lead, 2.50mm Pitch |
| Size / Dimension | 0.374" L x 0.157" W (9.50mm x 4.00mm) |
| Frequency Stability | ±0.3% |
| Frequency Tolerance | ±0.5% |
| Operating Temperature | -40°C ~ 85°C |
