Texas Instruments TPL9201N

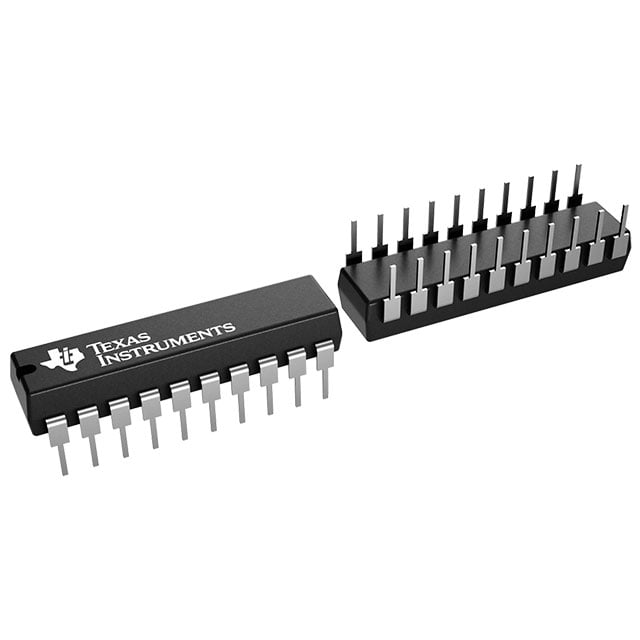

Image shown is a representation only
Manufacturer
Manufacturer No
TPL9201N
Package
20-DIP (0.300", 7.62mm)
Packaging
Tube
Description
IC PWR DRIVER N-CHAN 1:8 20DIP
Detailed Description
Power Switch/Driver 1:8 N-Channel 150mA 20-PDIP
DataSheet
Mfr
Texas Instruments
Interface
Serial
Packaging
Tube
Input Type
Non-Inverting
Output Type
N-Channel
Part Status
Obsolete
Switch Type
General Purpose
Mounting Type
Through Hole
Package / Case
20-DIP (0.300", 7.62mm)
Voltage - Load
7V ~ 18V
Fault Protection
Current Limiting (Fixed), Over Temperature
Number of Outputs
8
Base Product Number
TPL9201
Output Configuration
Low Side
Ratio - Input:Output
1:8
Operating Temperature
-40°C ~ 125°C (TA)
Current - Output (Max)
150mA
Supplier Device Package
20-PDIP
Voltage - Supply (Vcc/Vdd)
0V ~ 5.25V
| Attribute | Value |
|---|---|
| Mfr | Texas Instruments |
| Interface | Serial |
| Packaging | Tube |
| Input Type | Non-Inverting |
| Output Type | N-Channel |
| Part Status | Obsolete |
| Switch Type | General Purpose |
| Mounting Type | Through Hole |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Voltage - Load | 7V ~ 18V |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
| Number of Outputs | 8 |
| Base Product Number | TPL9201 |
| Output Configuration | Low Side |
| Ratio - Input:Output | 1:8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Current - Output (Max) | 150mA |
| Supplier Device Package | 20-PDIP |
| Voltage - Supply (Vcc/Vdd) | 0V ~ 5.25V |
