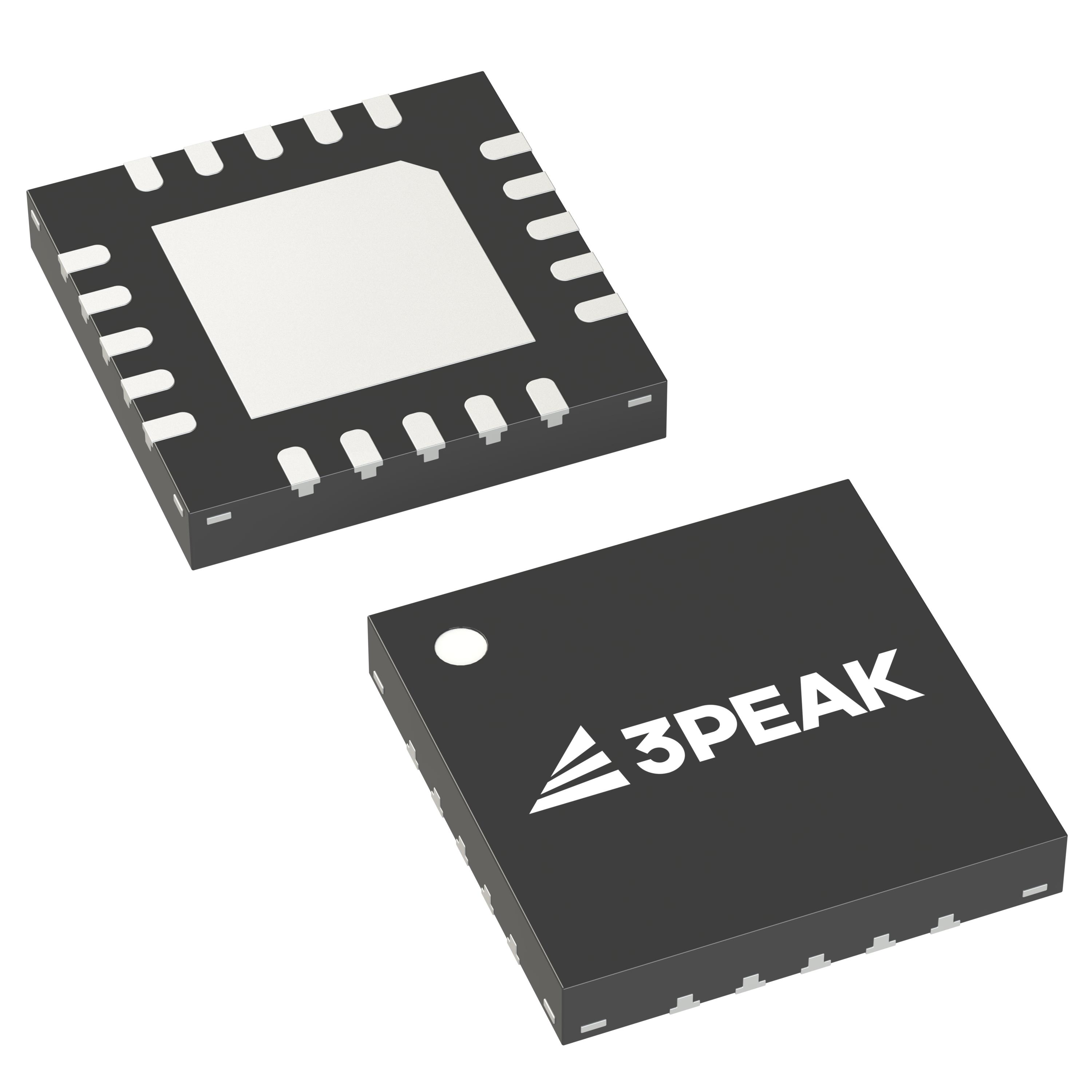

3PEAK TPL9208AD-QF7R-S
Image shown is a representation only
Manufacturer
Manufacturer No
TPL9208AD-QF7R-S
Package
20-WQFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC REG LINEAR POS ADJ 2A 20-QFN
Detailed Description
Linear Voltage Regulator IC Positive Adjustable 1 Output 2A 20-QFN (5x5)
DataSheet
Mfr
3PEAK
PSRR
63dB ~ 60dB (1kHz ~ 1MHz)
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Output Type
Adjustable
Part Status
Active
Mounting Type
Surface Mount
Package / Case
20-WQFN Exposed Pad
Control Features
Current Limit, Enable, Power Good, Soft Start
Current - Output
2A
Protection Features
Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Number of Regulators
1
Output Configuration
Positive
Operating Temperature
-40°C ~ 125°C (TJ)
Voltage - Input (Max)
6.5V
Voltage Dropout (Max)
0.2V @ 2A
Current - Supply (Max)
15 mA
Voltage - Output (Max)
5.2V
Supplier Device Package
20-QFN (5x5)
Current - Quiescent (Iq)
15 mA
Voltage - Output (Min/Fixed)
0.8V
| Attribute | Value |
|---|---|
| Mfr | 3PEAK |
| PSRR | 63dB ~ 60dB (1kHz ~ 1MHz) |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Output Type | Adjustable |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 20-WQFN Exposed Pad |
| Control Features | Current Limit, Enable, Power Good, Soft Start |
| Current - Output | 2A |
| Protection Features | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Voltage - Input (Max) | 6.5V |
| Voltage Dropout (Max) | 0.2V @ 2A |
| Current - Supply (Max) | 15 mA |
| Voltage - Output (Max) | 5.2V |
| Supplier Device Package | 20-QFN (5x5) |
| Current - Quiescent (Iq) | 15 mA |
| Voltage - Output (Min/Fixed) | 0.8V |
